PROGRAMMING
B–63684EN/01
9. PRESSING FUNCTION
95
Movement of tool

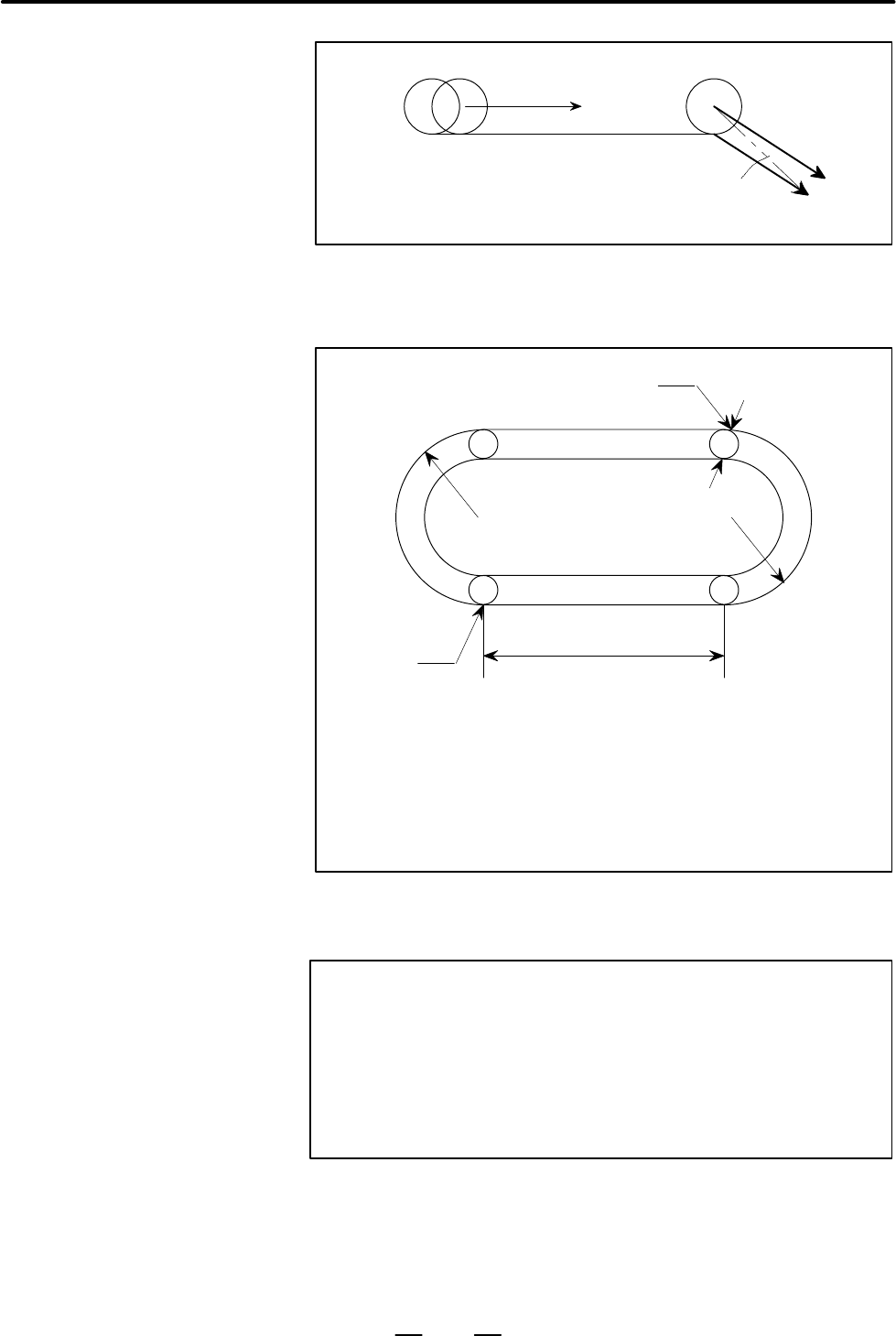

Fig. 9.3.3 (b) Incremental command just after linear nibbling (G69)
B
240
(50, 200)
90R
A
90R
(290, 200)
20φ
N731G72G90X290.0Y200. ;
N732G68I90. J–90. K180. P–20. Q5. ;
N733G69I240. J180. P20. Q5. ;
N734G72X50. Y200. ;
N735G68I90. J90. K180. P–20. Q5. ;
N736G69I240. J0P20. Q5. ;
It is not necessary to command point A by G72 in the block next to N732
nor point B by G72 in the block next to N735.
WARNING
1 Since radius, straight line length in G68 and G69 are not
modal data, they must be commanded correctly in every
block.
2 It is possible in certain machines that nibbling is not
performed by G68 or G69 command, but one-cycle
punching is executed at respective positioning points.
Example 3
