11. SETTING AND DISPLAYING DATA
637

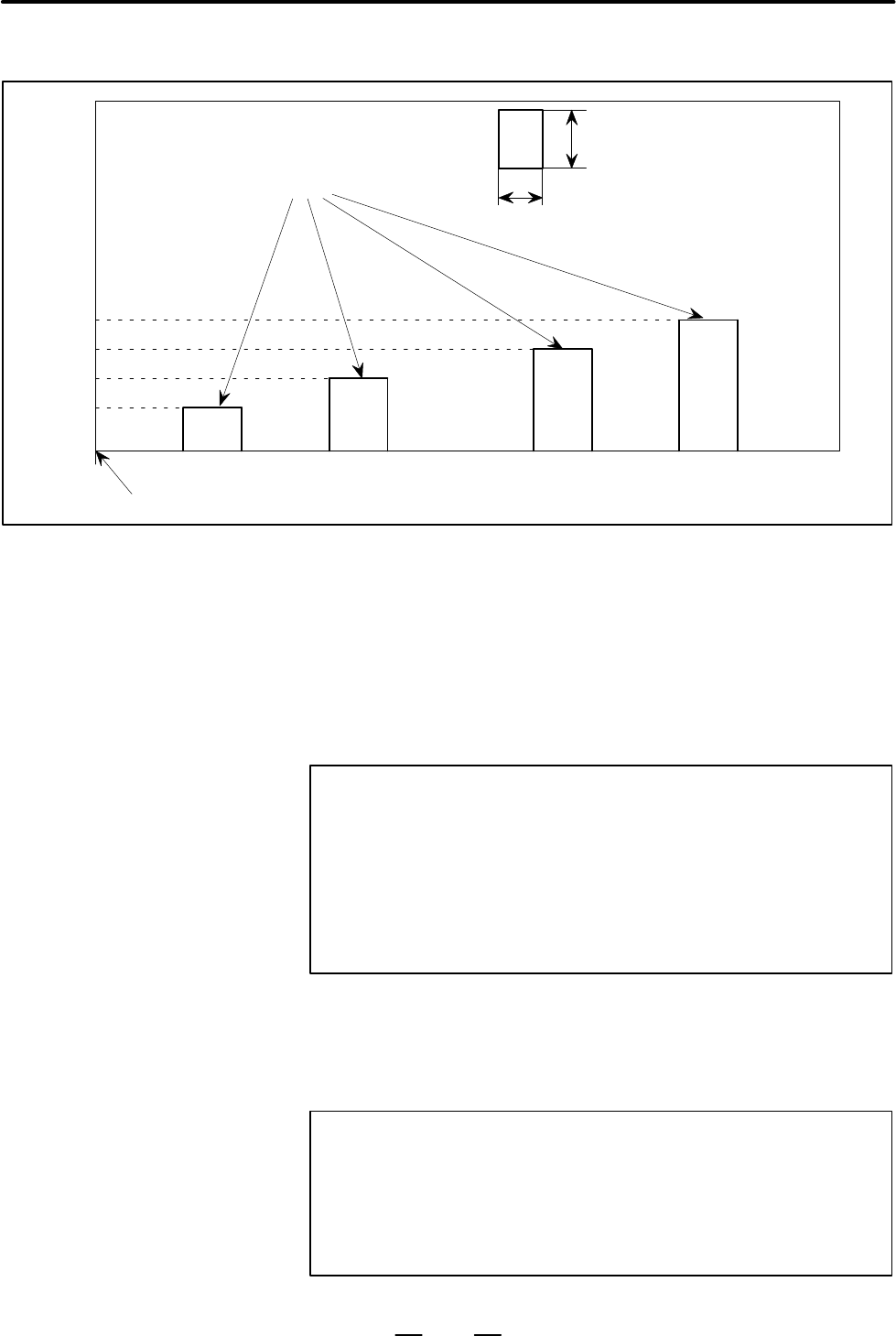

Safety zone data is as follows:
Safety zone
Y dimension of tool
X dimension of tool
X2
#1
#1
#2
#3
#4
0
Y
#4
Y
#3
Y
#2
Y
#1
X1
#1
X2
#2
X1
#2
X2
#3
X1
#3
X2
#4
X1
#4
Origin of the workppiece coordinate system
(a) Safety zone #n (n: 1 to 4) (parameters No. 16505 to No. 16516)
Up to four safety zones can be specified (Optionally, up to eight safety
zones can be specified). When a zone is specified in the workpiece
coordinate system, the data is converted to that in the machine
coordinate system and stored in the parameters.
Safety zone #n must be located closer to the origin than safety zone
#n+1.
Settings range from –99999999 to +99999999.
NOTE
For unnecessary safety zones, specify the coordinates of a
tool located when it returns to the reference position.
Workpiece coordinate system :
Coordinates of a position for setting
the automatic coordinate system
(specified in parameter No. 1250)
Machine coordinate system : 0
(b)Tool position (parameters No. 16517 to No. 16532)
Specify the dimensions of a tool along the X- and Y-axes. Settings
range from 0 to 99999999.
NOTE
1 Up to eight tool positions can be specified (Optionally, up to
16 tool positions can be specified). Tool positions not
currently selected cannot be specified.
2 Data items (a) and (b) can also be specified on the
parameter screen.
