OPERATION11. SETTING AND DISPLAYING DATA

B–63684EN/01

646

With this function, functions of the switches on the machine operator’s

panel can be controlled from the MDI panel.

Jog feed can be performed using numeric keys.

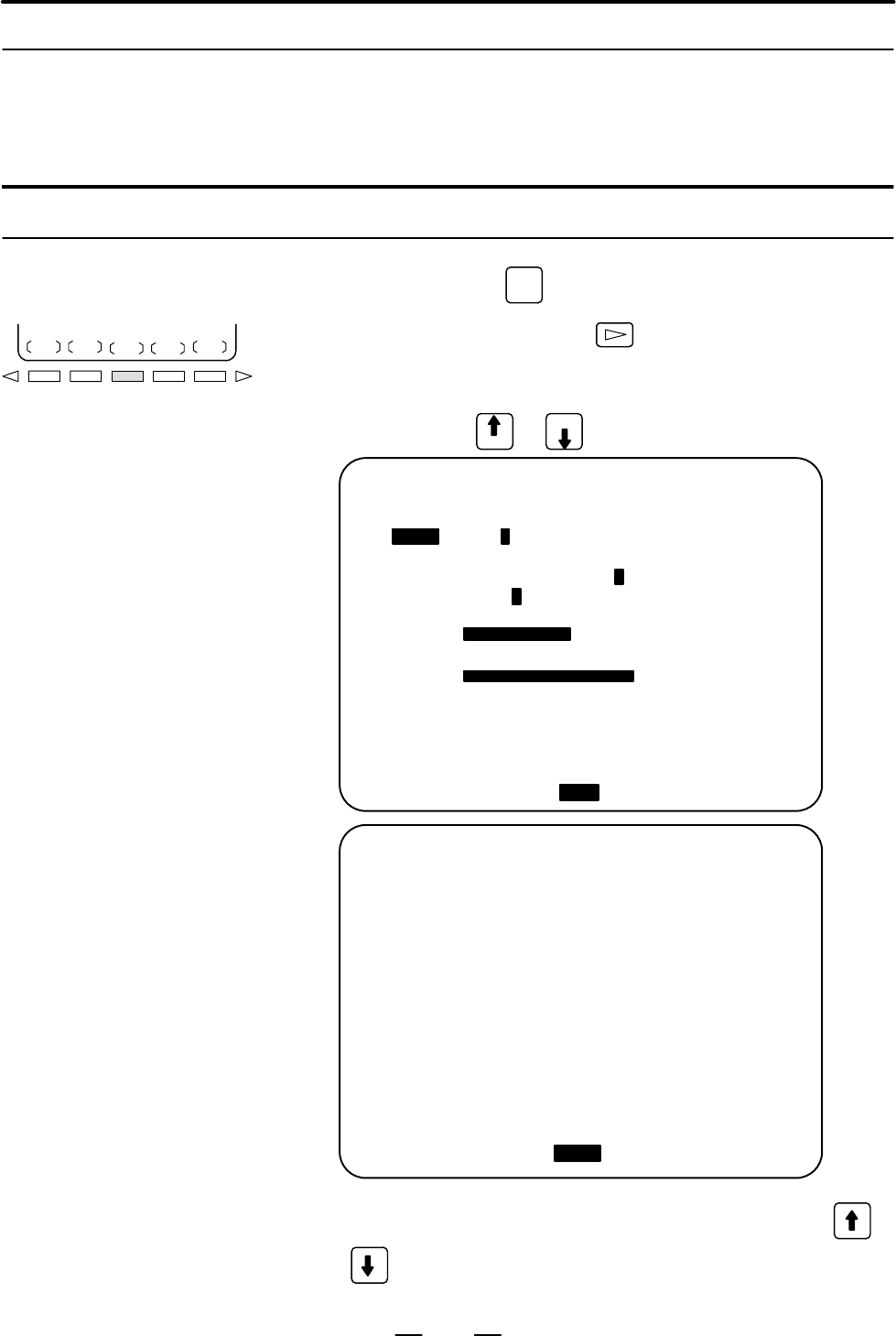

Procedure for displaying and setting the software operator’s panel

1 Press function key

OFFSET

SETTING

2 Press the continuous menu key

, then press chapter selection soft

key

[OPR].

3 The screen consists of several pages.

Press page key

PAGE

until the desired screen is displayed.

OPERATOR’S PANEL O0000 N00000

MODE : MDI AUTO EDIT HNDL JOG ZRN

STEP MULTI. : *1 *10 *100

RAPID OVRD. : 100% 50% 25% F0

JOG FEED : 2.0%

**************

FEED OVRD. : 100%

***

ACTUAL POSITION (ABSOLUTE)

X 0.000 Y 0.000

C 0.000

MDI **** *** *** 16:05:59

[ MACRO ][ ][ OPR ][TOOLLF][ (OPRT) ]

OPERATOR’S PANEL O0000 N00000

BLOCK SKIP : OFF J ON

SINGLE BLOCK : J OFF ON

MACHINE LOCK : OFF J ON

PROTECT KEY : J PROTECT RELEASE

FEED HOLD : J OFF

ACTUAL POSITION (ABSOLUTE)

X 0.000 Y 0.000

C 0.000

S 0 T0000

MDI **** *** *** 16:05:59

[ MACRO ][ ][ OPR ][TOOLLF][ (OPRT) ]

4 Move the cursor to the desired switch by pressing cursor key or

11.4.10

Displaying and Setting

the Software

Operator’s Panel

Procedure

OPR
