PROGRAMMING

14. FUNCTIONS TO SIMPLIFY

PROGRAMMING

B–63684EN/01

172

nx: The number of products in the X axial direction (Note)

ny: The number of products in the Y axial direction (Note)

NOTE

Product part  is not counted.

After command of G98, specify machining commands on the lower left

product part (  in Fig. 14.5.1 (a)) using the macro function (specify the

machining commands between address word U and V).

In the multi-piece machining function, if a set of machining commands

corresponding to a single tool is executed continuously on the all product

parts, the tool change count is decreased so that the time required for full

machining on a material sheet can be considerably decreased. The

following illustrates this.

 









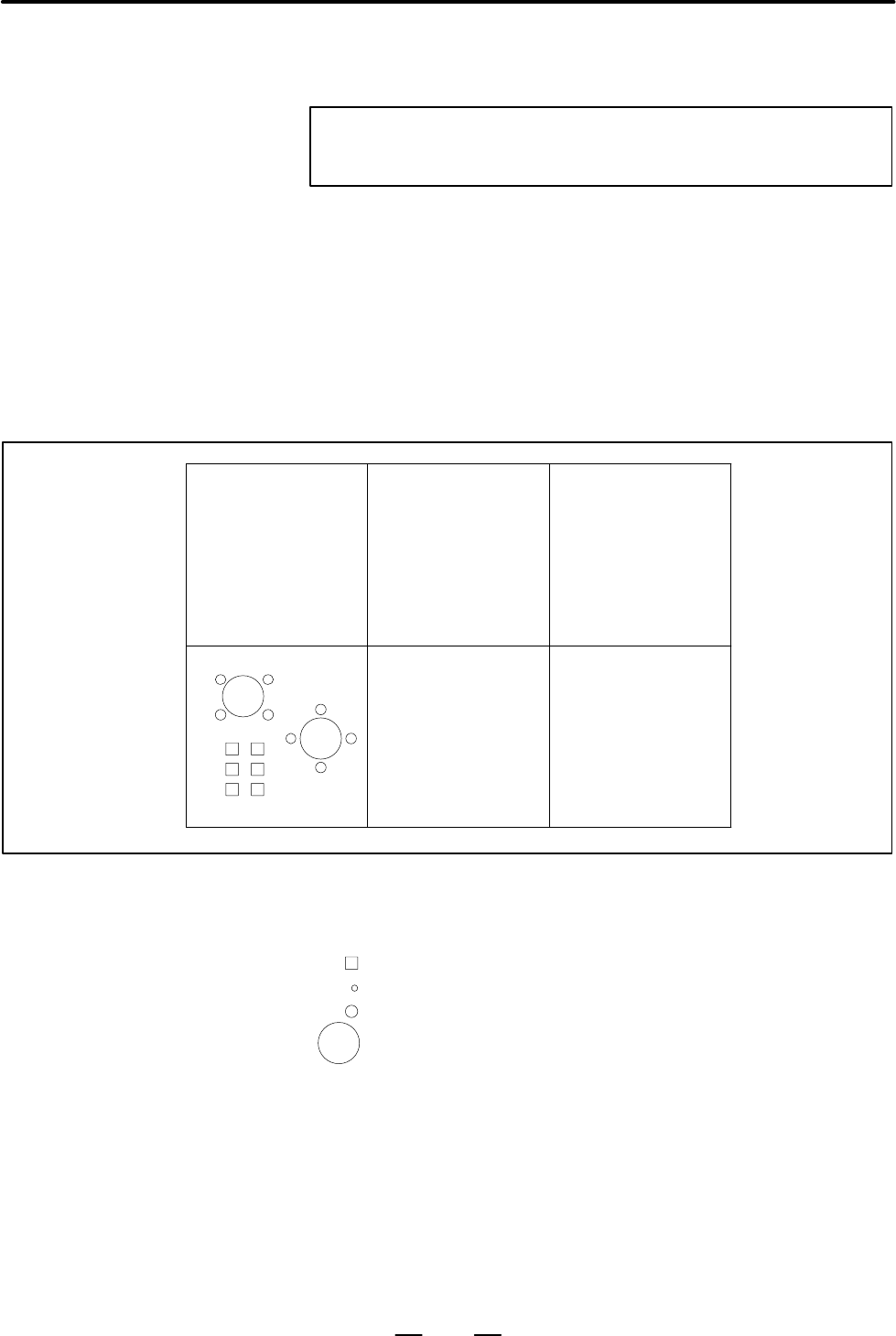

Fig. 14.5.1 (b)

Let the following four types of tools be used to punch products for one

sheet, as shown in Fig. 14.5.1 (b).

T31

T11

T22

(with T33 in nibbling mode)
