PROGRAMMING

14. FUNCTIONS TO SIMPLIFY

PROGRAMMING

B–63684EN/01

142

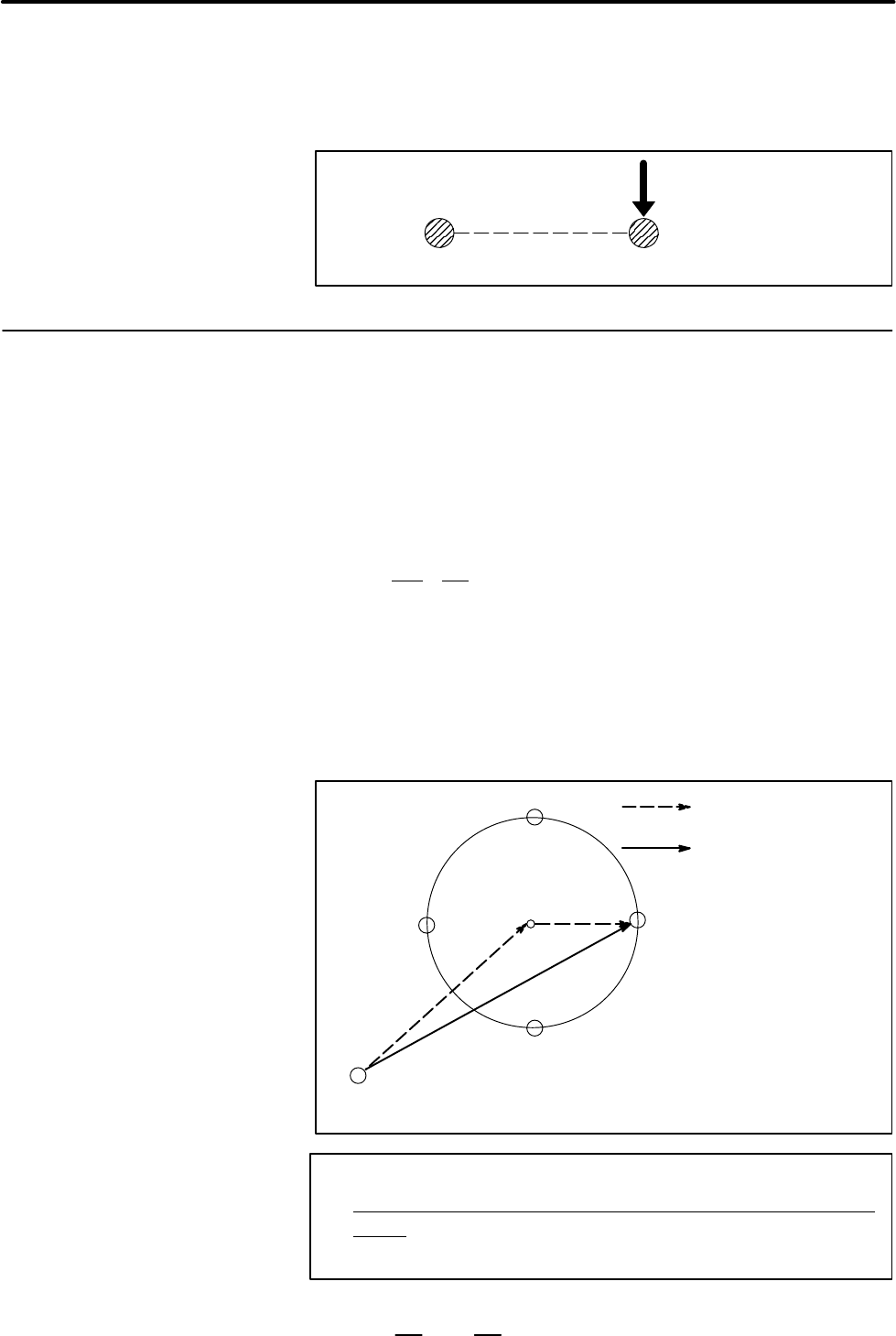

In pattern function, the following two motions are repeatedly done to

punch at respective positions.

Motion 1 ... Positioning of X, Y axes (rapid traverse)

Motion 2 ... Punch by press motion

Motion 1

(Positioning)

Motion 2

(Punch by press motion)

Of the pattern function, the center point of the bolt hole circle (G26), arc

(G77) and radius (G88), and also the start point of line at angle (G76), grid

(G78, G79), share proofs (G86), Square (G87) and cut at angle (G89) are

called base point of pattern.

The present position of the tool when the pattern function was

commanded, i.e. the tool position in the block just before the pattern

function command, is the base point of pattern. If it is desired to set

another position as the pattern base point, the base point of pattern is

assignable by the following command.

G72X x

Y y ;

The (x, y) point in the work coordinate system is the pattern base point

in absolute (G90) programming, while the point distant from the present

position by (x, y) is the reference point in incremental (G91)

programming.

G72 specifies the pattern base point, and the tool does not move.

(50, 50)

(150, 150)

Movement of tool in

program 1

Movement of tool in

program 2

Program 1

G90X50.Y50.;

G70X150. Y150.;

G26I60. J0K4;

Program 2

G90X50.Y50.;

G72X150. Y150.;

G26I60. J0K4;

WARNING

1 None of T code, M code, and F code is commandable in G72

block.

2 G72 is one-shot G code.

14.1.1

Base Point Command

(G72)

Examples
