Series 16i/18i/160i/180i - PB Operators manual Page 419

Operators manual

Page of 792

/ 792

OPERATION

B–63684EN/01

3. MANUAL OPERATION

393

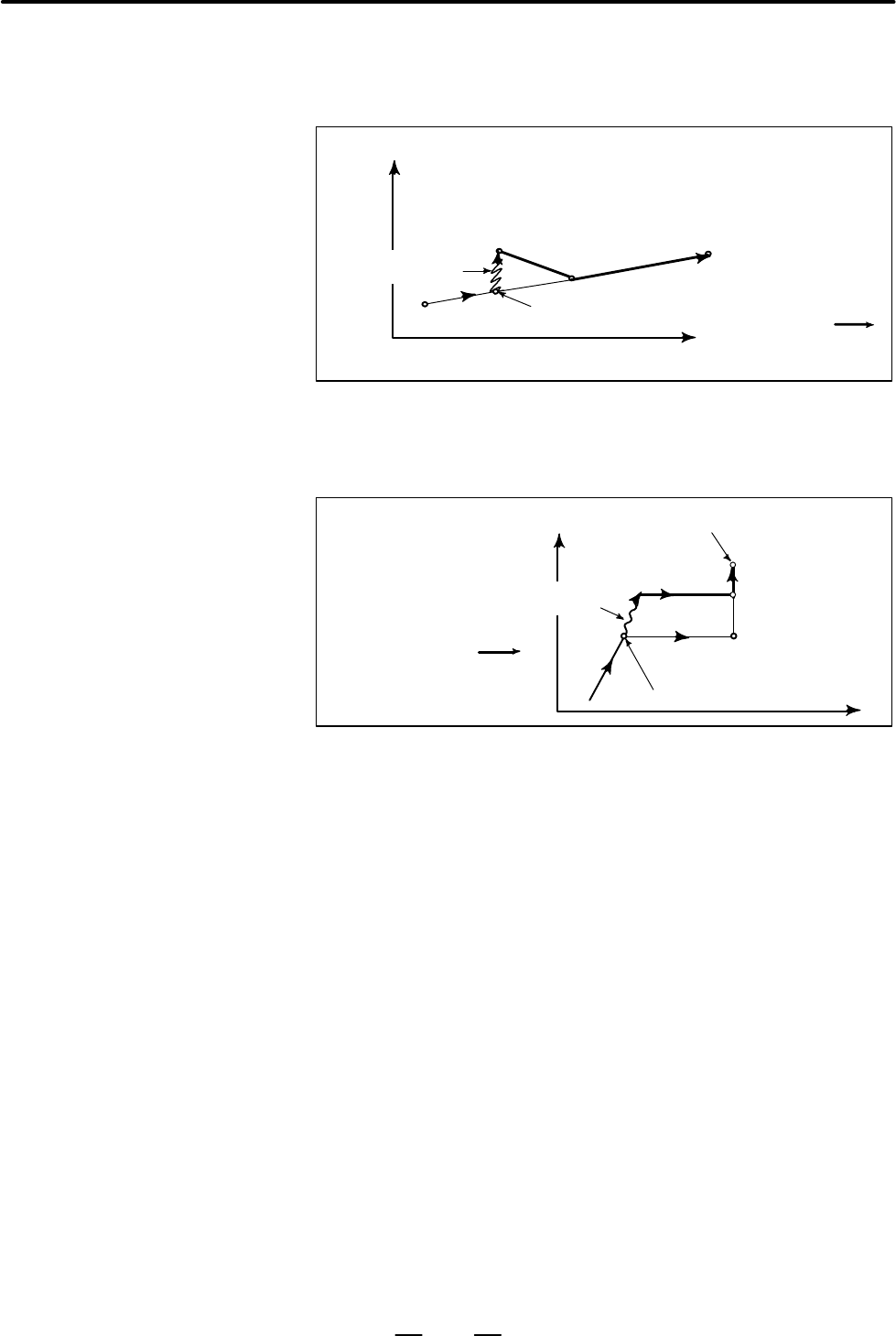

Coordinates when the feed hold button is pressed while block  is being

executed, manual operation (Y–axis +75.0) is performed, the control unit

is reset with the RESET button, and block  is read again

(200.0,150.0)

(300.0 , 200.0)

(150.0 , 200.0)

(150.0 , 125.0)(100.0 , 100.0)

Switch ON

Manual

operation

When there is only one axis in the following command, only the

commanded axis returns.

Manual

operation

N1G01X100.0Y100.0F500;

N2X200.0;

N3Y150.0;

(100.0 , 100.0)

(200.0 , 100.0)

Switch ON

(200.0 , 150.0)

When the following commands are incremental commands, operation is

the same as when the switch is OFF.

When the switch is ON during cutter compensation

Operation of the machine upon return to automatic operation after manual

intervention with the switch is ON during execution with an absolute

command program in the cutter compensation mode will be described.

The vector created from the remaining part of the current block and the

beginning of the next block is shifted in parallel. A new vector is created

based on the next block, the block following the next block and the

amount of manual movement. This also applies when manual operation

is performed during cornering.

D When reset after a

manual operation

following a feed hold

D When a movement

command in the next

block is only one axis

D When the next move

block is an incremental

D Manual operation during

cutter compensation
