OPERATION6. SAFETY FUNCTIONS
B–63684EN/01
466

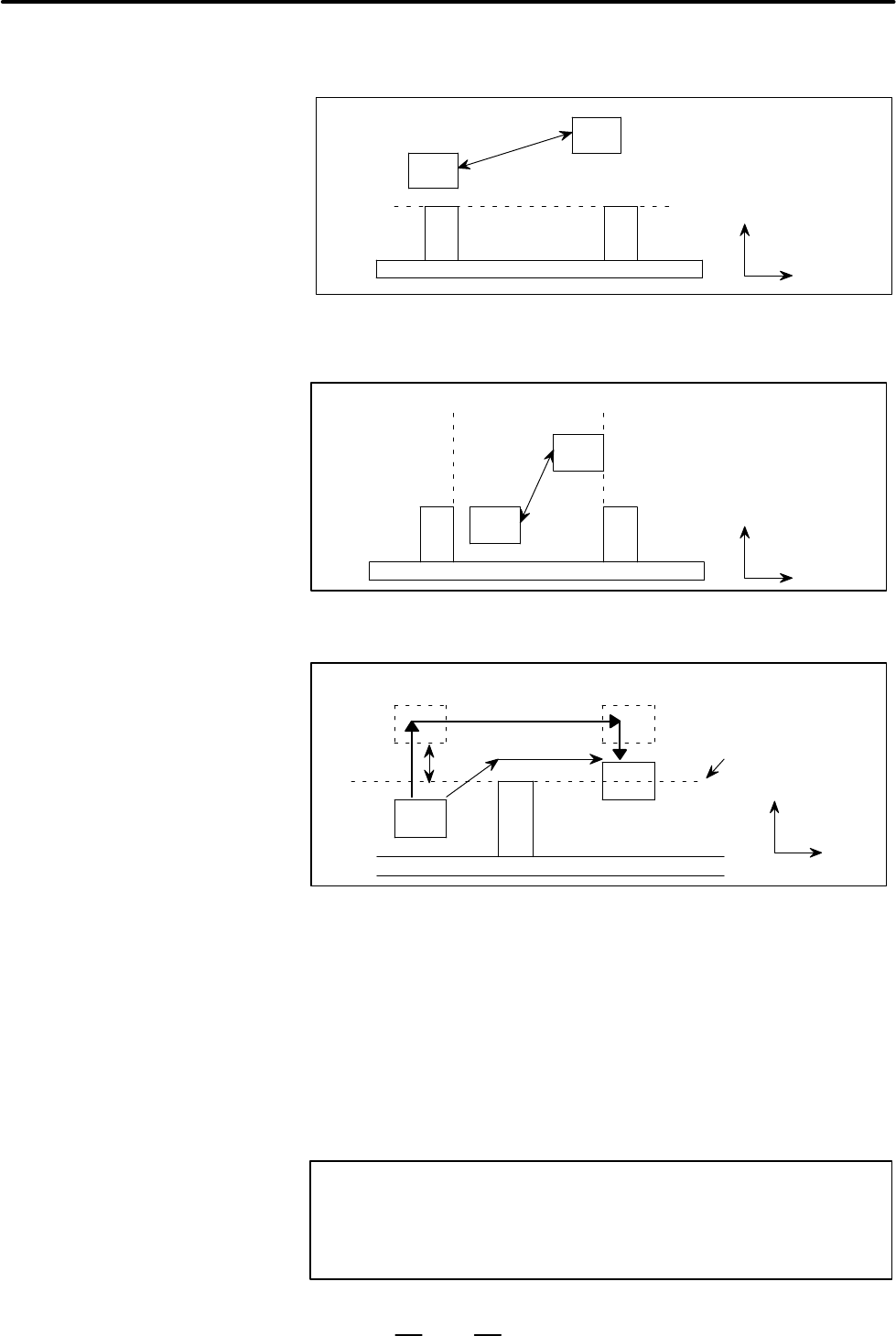

(2)When the start and end points of movement along the Y–axis are above
the Y area of the workpiece holders
Y
X
Tool
Tool
(3)When the tool does not cross the X area of a workpiece holder for
movement along the X–axis
Y
X
Tool
Tool
When both the start and end points on the Y–axis are in the Y area of the
workpiece holders, the following avoidance operation is performed:
D
Y
X
Y area of workpiece holder
A
d
Tool
Tool
B
C
The avoidance operation modifies the positioning path from A to D to that
from A to B to C to D.
1 Amount of travel between A and B on the Y–axis
= (workpiece holder position) + (tool area/2) + d
– (current position A)
d: Avoidance operation offset (parameter No. 16561)
2 Amount of travel between B and C along the X–axis =
(X command value)
3 Amount of travel between C and D along the Y–axis
= (Y command position D) – (current position C)
WARNING
If feed hold signal *SP (G008#5) is set to 0 during an
avoidance operation, the tool stops upon the completion of
the avoidance operation.
