PROGRAMMING

B–63684EN/01

16. CUSTOM MACRO

307

The modal information present before the interrupt becomes valid. The

new modal information modified by the interrupt program is made

invalid.

The new modal information modified by the interrupt program remains

valid even after control is returned. The old modal information which was

valid in the interrupted block can be read using custom macro system

variables #4001 to #4120.

Note that when modal information is modified by the interrupt program,

system variables #4001 to #4120 are not changed.

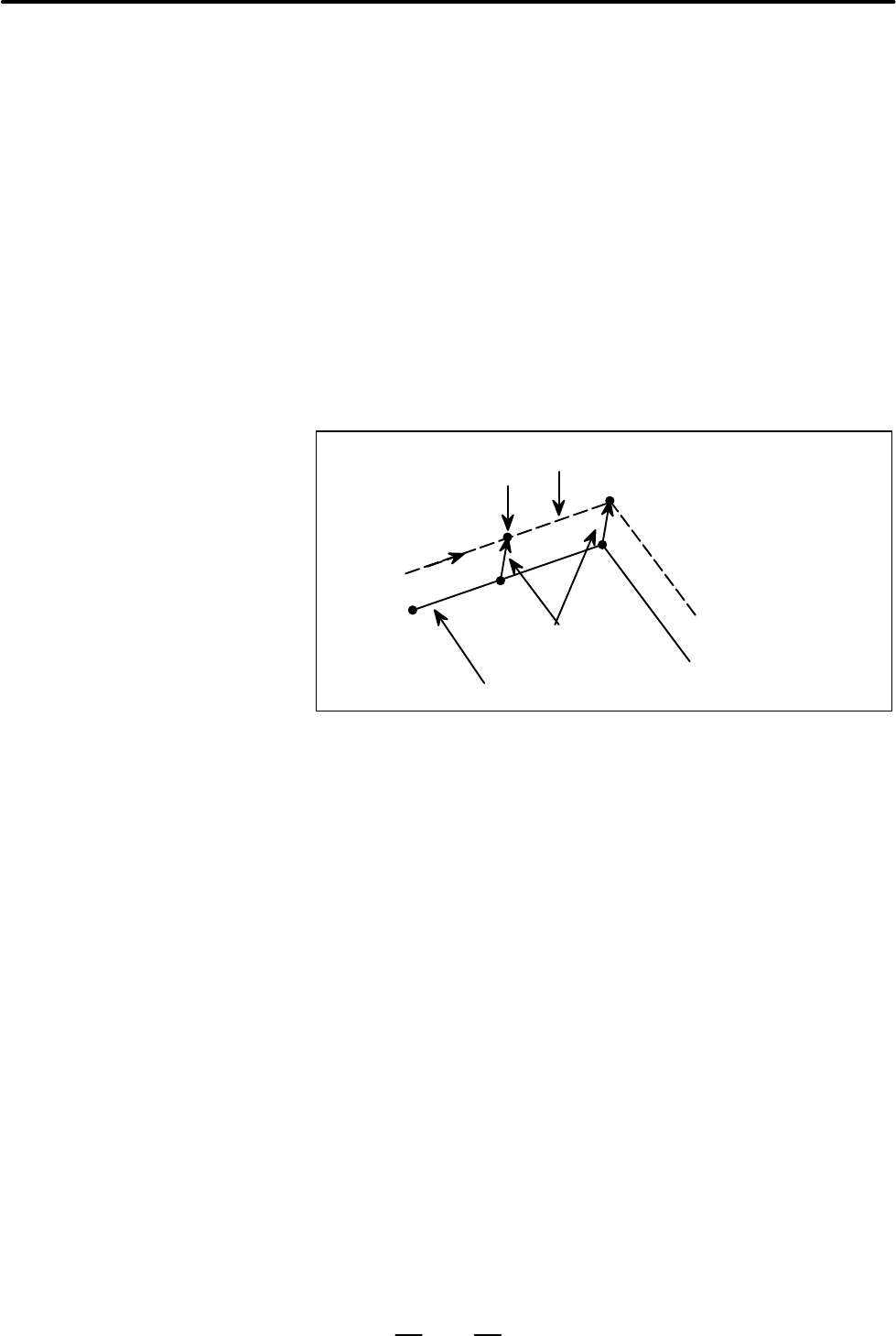

S The coordinates of point A can be read using system variables #5001

and up until the first NC statement is encountered.

S The coordinates of point A’ can be read after an NC statement with no

move specifications appears.

S The machine coordinates and workpiece coordinates of point B’ can

be read using system variables #5021 and up and #5041 and up.

B’

A’

Interrupt generated

Tool center path

Offset vector

Programmed tool path

When the interrupt signal (UINT) is input and an interrupt program is

called, the custom macro modal call is canceled (G67). However, when

G66 is specified in the interrupt program, the custom macro modal call

becomes valid. When control is returned from the interrupt program by

M99, the modal call is restored to the state it was in before the interrupt

was generated. When control is returned by M99Pxxxx;, the modal call

in the interrupt program remains valid.

“Interruption type custom macro” cannot be done during DNC operation

or executing a program with an external input–output device.

Modal information when

control is returned by

M99

Modal information when

control is returned by

M99 Pffff

D System variables

(position information

values) for the interrupt

program

D Custom macro interrupt

and custom macro

modal call

D DNC operation and

interruption type custom

macro
