OPERATION3. MANUAL OPERATION
B–63684EN/01
392

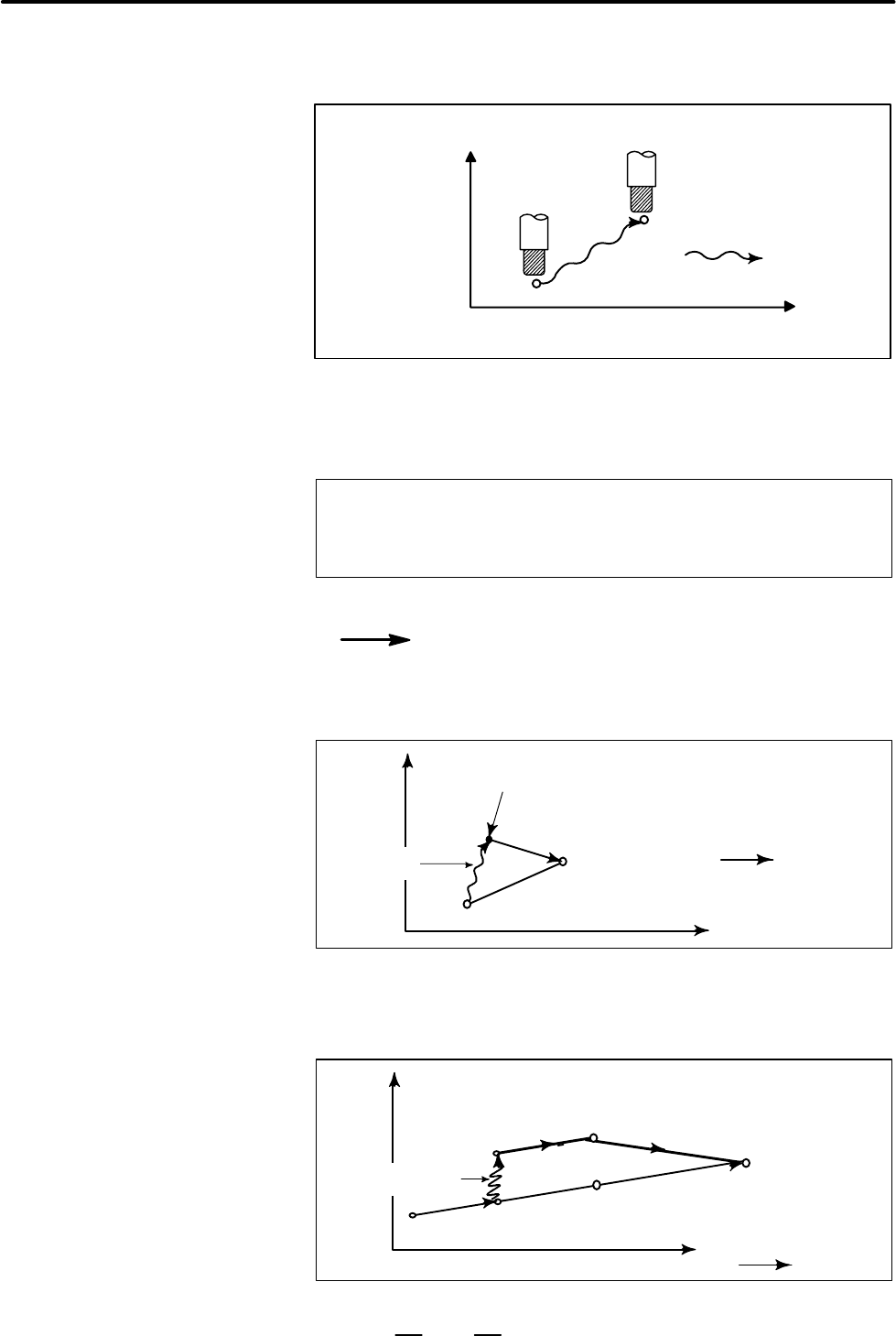

The distance of the tool is moved by manual operation is added to the
coordinates.
O
P1
P2
Y axis
X axis
Manual operation
The coordinates values change by the amount of manual operation.
The following describes the relation between manual operation and
coordinates when the manual absolute switch is turned on, using a
program example.
G01G90
X200.0Y150.0
X100.0Y100.0F010
X300.0Y200.0
;
;
;
The subsequent figures use the following notation:
Movement of the tool when the switch is on
Coordinates when block has been executed after manual operation
(X–axis +20.0, Y–axis +100.0) at the end of movement of block .
Y
X
(120.0 , 200.0)
(200.0 , 150.0)
Switch ON
(100.0 , 100.0)
Manual
operation
Coordinates when the feed hold button is pressed while block is being
executed, manual operation (Y–axis + 75.0) is performed, and the cycle
start button is pressed and released.
(300.0 , 200.0)
(200.0 , 150.0)
(150.0 , 125.0)
(150.0 , 200.0)
(200.0 , 225.0)
Y
X
Switch ON
Manual
operation
3.5
MANUAL ABSOLUTE
ON
Explanation
D Manual operation after
the end of block
D Manual operation after a
feed hold
