Series 16i/18i/160i/180i - PB Operators manual Page 184

Operators manual

Page of 792

/ 792

PROGRAMMING

14. FUNCTIONS TO SIMPLIFY

PROGRAMMING

B–63684EN/01

158

When it is desired to repeatedly use a pattern with the same figure among

the pattern functions, this function can store it in memory with a given

number and access it as needed. Programs other than those using the

pattern functions can be stored in memory and can be called.

1) Memory

When a one-digit numeral from 1 to 5 subsequent to address A is given

before the G code of the pattern function, the pattern function

according to the G-code is stored in the memory.

(Example) A2G76I300J3000K5;

2) Call

By giving a one-digit numeral from 1 to 5 subsequent to address B, it

is possible to call the pattern function stored previously with address

(Example) B2;

3) Example

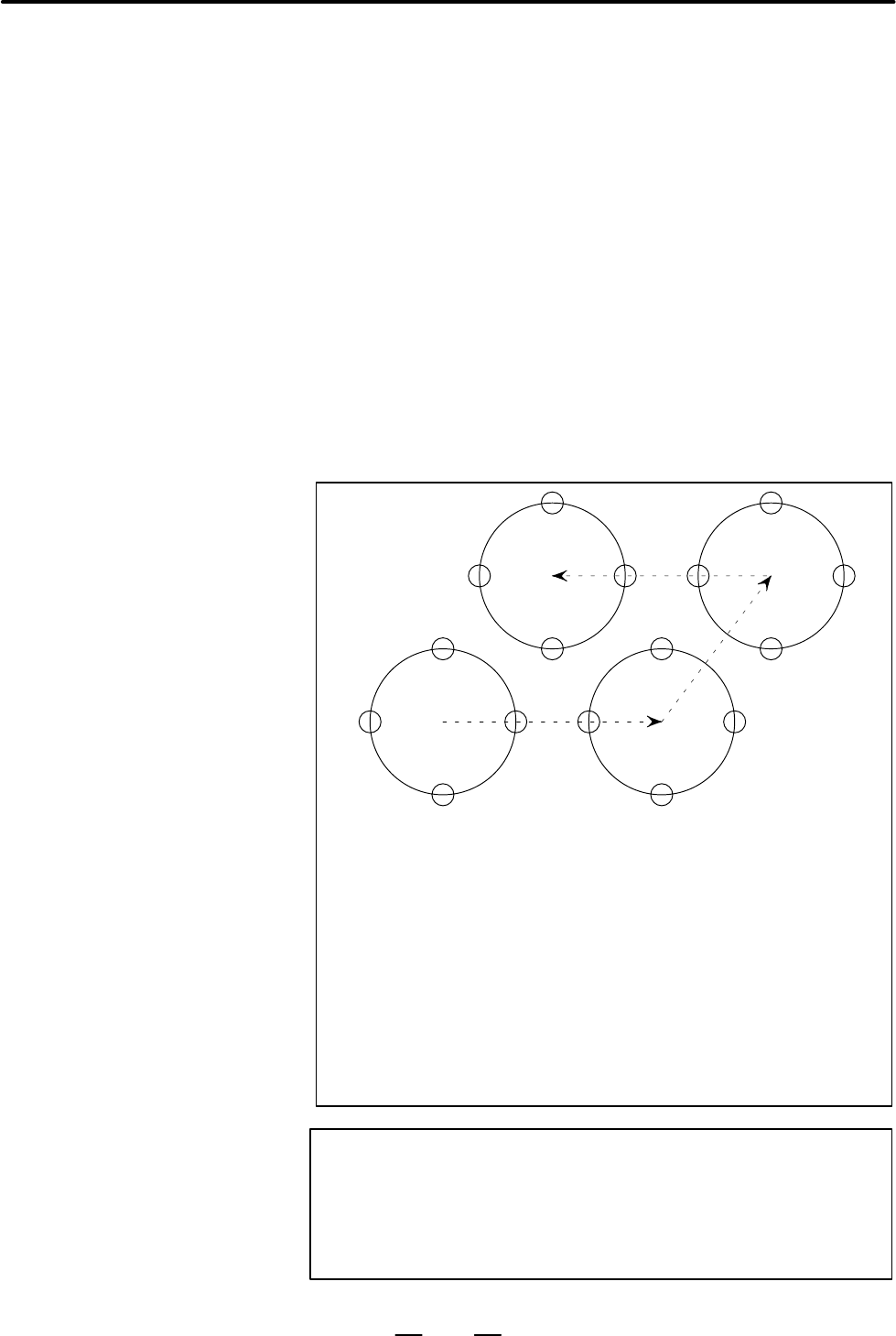

When bolt hole circles with the same figure having a center in (100,

100), (200, 100), (250, 200), and (150, 200) are present:

(250, 200)(150, 200)

(200, 100)(100, 100)

G72X100.Y100. ;

A2G26I50.J0K4 ; ²

G72X200.Y100. ;

B2 ; ²

G72X250.Y200. ;

B2 ;

G72X150.Y200. ;

B2 ;

Designated for storage

after execution

Recall of

pattern A2

WARNING

1 Do not give the same number because the pattern function

differs. At this time, the previous memory is erased.

2 Only a block with up to 192 characters can be stored in

memory.

14.2

MEMORY AND CALL

BY A/B MACRO
