Series 16i/18i/160i/180i - PB Operators manual Page 208

Operators manual

Page of 792

/ 792

PROGRAMMING

14. FUNCTIONS TO SIMPLIFY

PROGRAMMING

B–63684EN/01

182

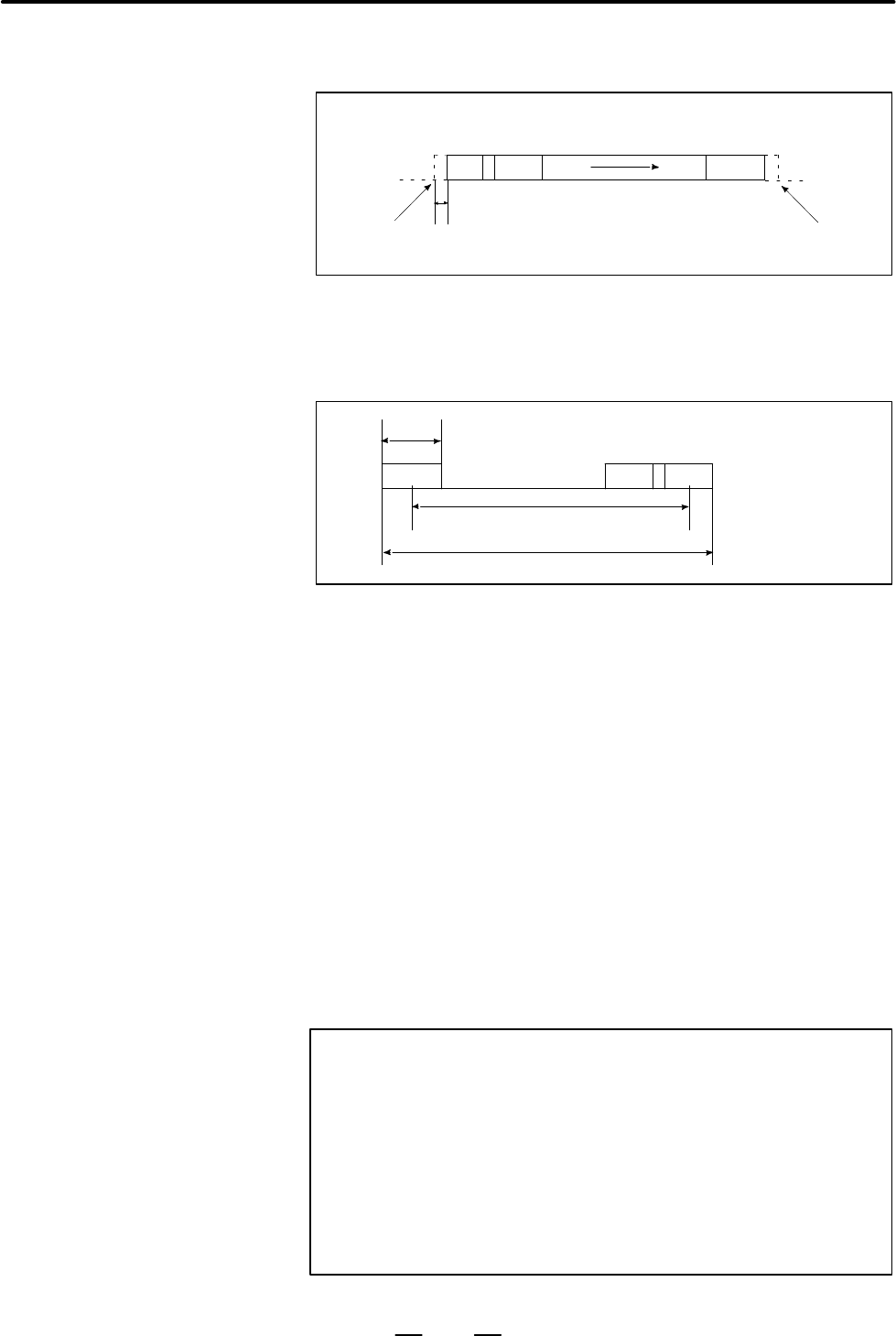

G72X10.Y10. ;

G45X100.Y10.P20.Q10.R1 D-5. ;

+ ++

(100, 10)

5(10, 10)

By setting the width of a micro-joint, j, the dimension of the punched

portion can be changed at the punch start and end points to compensate

for the punch error.

The following punch procedure is used:

+++

Width - dx

Width

1 The first portion is punched.

2 The punch interval is 95% of the tool width dx in the direction along

which the punch moves.

3 Obtain the number of times (n) a workpiece is punched.

n = (width of portion to be punched–dx)/(0.95 dx)

When n is less than or equal to 1, the interval is (width–dx). When n

is an integer, the interval is (0.95 dx).

When n is not an integer, the number of times a workpiece is punched

changes to n’ = [n] + 1, where [n] is n rounded off to the nearest integer.

The interval (P) is (width–dx)/n’. The last interval changes to

(width–dx)–P (n’–1) so that the final punch operation is performed

at the specified position.

4 The interval calculated above always falls within the following range.

0.45dxxintervalx0.95dx

The distance from the start point to the end point must be greater than

or equal to 1.5dx.

NOTE

1 If the distance from the start point to the end point is less

than 1.5dx or the end point is not specified with a G45

command, alarm No. 4510 is issued.

2 If the dimension of a tool in the direction along which the

punch moves is not specified, alarm No. 4510 is issued. If

the dimension of a tool in the direction perpendicular to that

in which the punch moves is not specified, the tool tip is

assumed to be square.
