Series 16i/18i/160i/180i - PB Operators manual Page 573

Operators manual

Page of 792

/ 792

OPERATION

B–63684EN/01

9. EDITING PROGRAMS

547

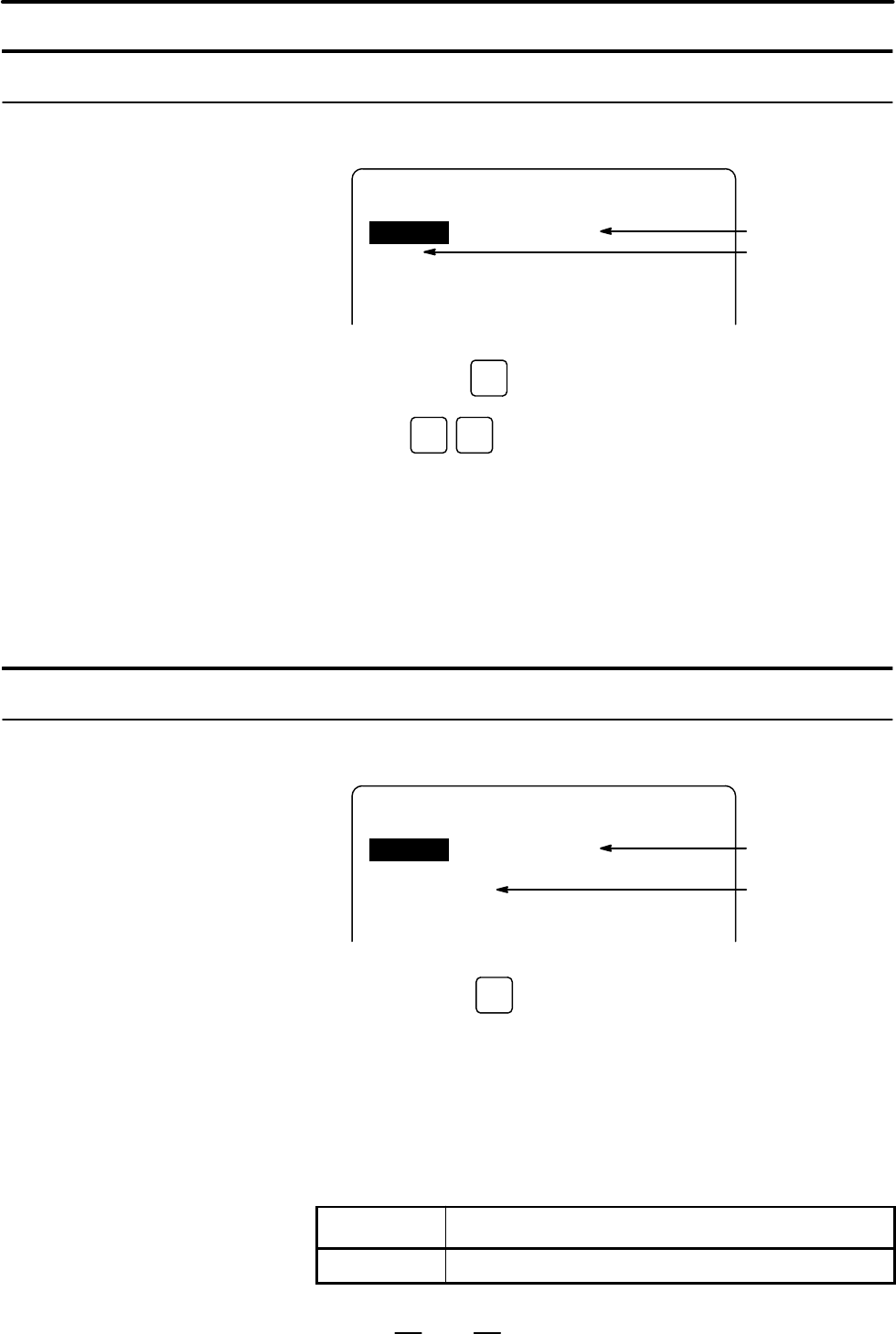

Procedure for searching a word

Example) of Searching for T12

PROGRAM

O0050 N01234

O0050 ;

X100.0 Y1250.0 ;

T12 ;

N56789 M03 ;

M02 ;

N01234

N01234 is being

searched for/

scanned currently.

T12 is searched

for.

1 Key in address

2 Key in

⋅T12 cannot be searched for if only T1 is keyed in.

⋅T09 cannot be searched for by keying in only T9.

To search for T09, be sure to key in T09.

3 Pressing the

[SRH↓] key starts search operation.

Upon completion of search operation, the cursor is displayed at T12.

Pressing the

[SRH↑] key rather than the [SRH↓] key performs search

operation in the reverse direction.

Procedure for searching an address

Example) of Searching for M03

PROGRAM

O0050 N01234

O0050 ;

X100.0 Y1250.0 ;

T12 ;

N56789 M03 ;

M02 ;

N01234

N01234 is being

searched for/

scanned currently.

M03 is searched

for.

1 Key in address

2 Press the

[SRH↓] key.

Upon completion of search operation, the cursor is displayed at M03.

Pressing the

[SRH↑] key rather than the [SRH↓] key performs search

operation in the reverse direction.

Alarm number Description

71 The word or address being searched for was not found.

Procedure

Alarm
