PROGRAMMING16. CUSTOM MACRO

B–63684EN/01

290

N1 X100.0 ;

> : Block being executed

V : Block read into the buffer

NC statement

execution

Macro statement

execution

Buffer

N2 #1=100 ;

N3 #2=200 ;

N4 Y200.0 ;

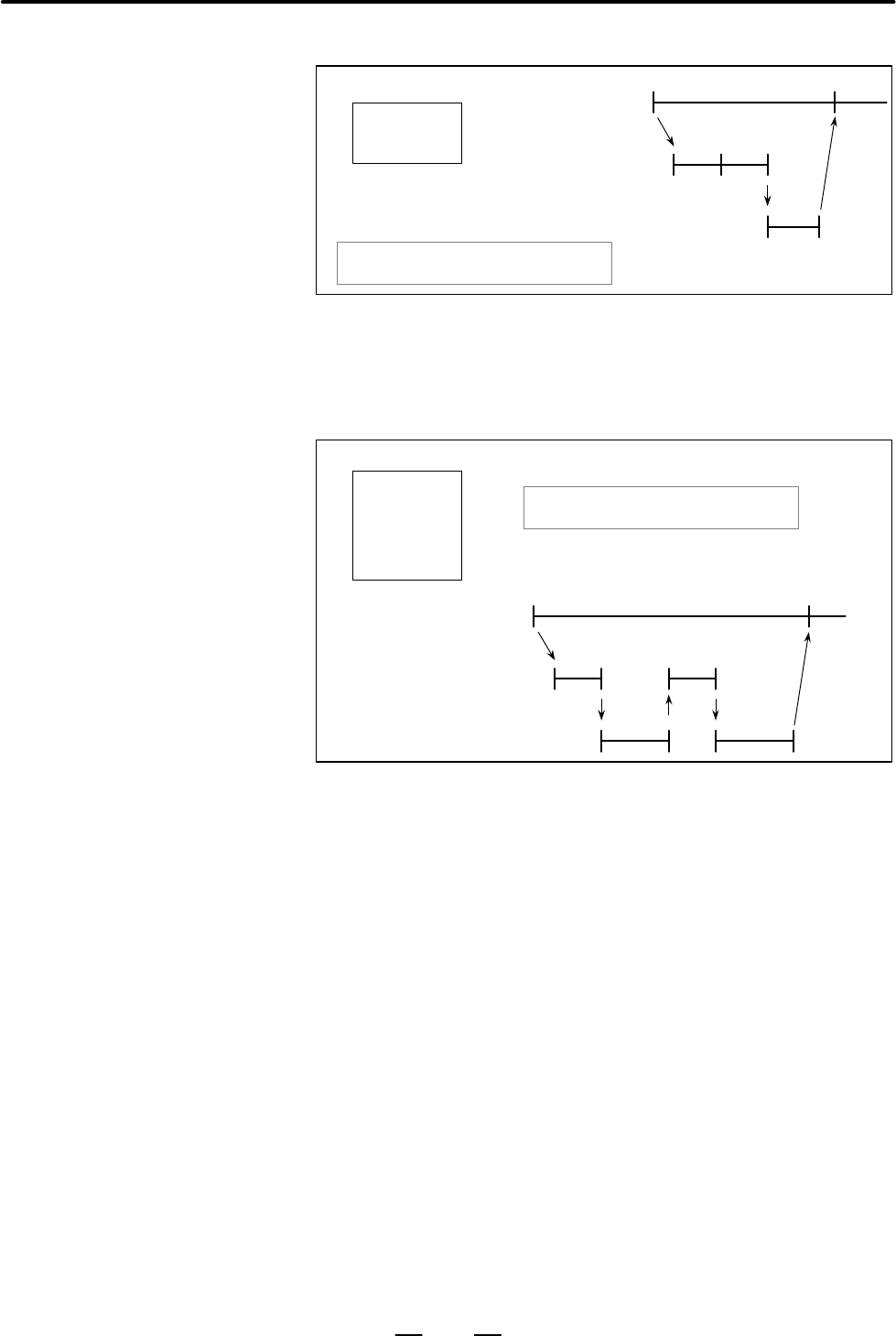

When N1 is being executed, the next NC statement (N4) is read into the

buffer. The macro statements (N2, N3) between N1 and N4 are processed

during execution of N1.

N1 G01 G41 G91 X50.0 Y30.0 F100 Dd ;

> : Block being executed

V : Blocks read into the buffer

NC statement

execution

Macro statement

execution

Buffer

N2 #1=100 ;

N3 X100.0 ;

N4 #2=200 ;

N5 Y50.0 ;

When N1 is being executed, the NC statements in the next two blocks (up

to N5) are read into the buffer. The macro statements (N2, N4) between

N1 and N5 are processed during execution of N1.

D Buffering the next block

in other than cutter

compensation mode

(G41, G42) (normally

prereading one block)

D Buffering the next block

in cutter compensation

mode (G41, G42)
