PROGRAMMING

12. COMPENSATION FUNCTION

B–63664EN/02

154

This section provides a detailed explanation of the movement of the beam

for cutter compensation C outlined in Section 12.2.

This section consists of the following subsections:

12.3.1 General

12.3.2 Nozzle Movement in Start–up

12.3.3 Nozzle Movement in Offset Mode

12.3.4 Nozzle Movement in Offset Mode Cancel

12.3.5 Interference Check

12.3.6 Overcutting by Cutter Compensation

12.3.7 Input command from MDI

12.3.8 G53, G28, G30, G30.1 and G29 commands in cutter

compensation C mode

12.3.9 Corner Circular Interpolation (G39)

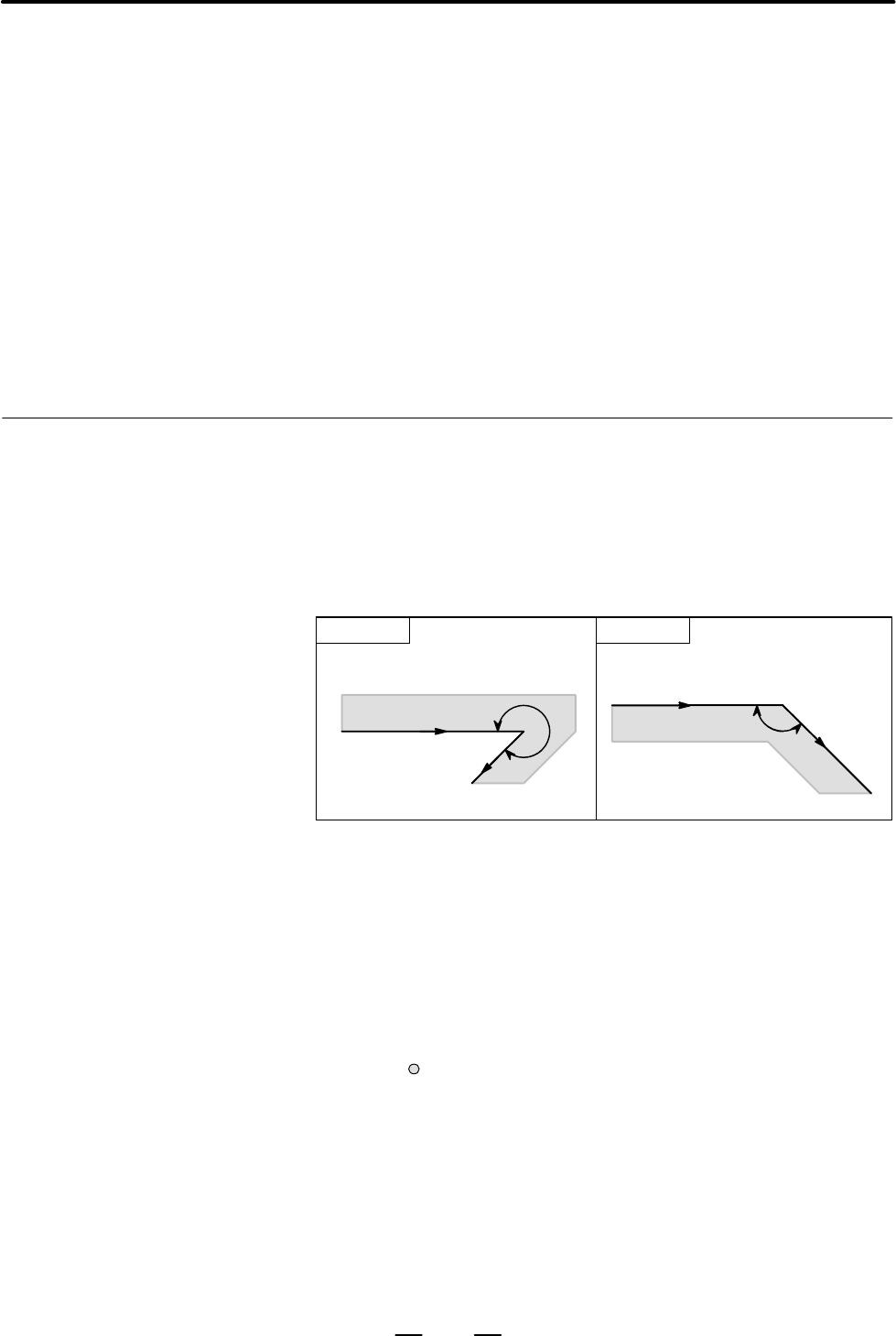

When an angle of intersection created by beam paths specified with move

commands for two blocks is over 180°, it is referred to as “inner side.”

When the angle is between 0° and 180°, it is referred to as “outer side.”

Workpiece

Programmed path

Inner side

180°xα 0°xα<180°

Outer side

Workpiece

Programmed path

The following symbols are used in subsequent figures:

– S indicates a position at which a single block is executed once.

– SS indicates a position at which a single block is executed twice.

– SSS indicates a position at which a single block is executed three times.

– L indicates that the nozzle moves along a straight line.

– C indicates that the nozzle moves along an arc.

– r indicates the cutter compensation value.

– An intersection is a position at which the programmed paths of two

blocks intersect with each other after they are shifted by r.

– indicates

the center of the beam.

12.3

DETAILS OF CUTTER

COMPENSATION C

12.3.1

General

D Inner side and outer side

D Meaning of symbols
