OPERATION

4. AUTOMATIC OPERATION

B–63664EN/02

516

With the retrace function, the nozzle can be moved in the reverse direction

(reverse movement) by using the REVERSE switch during automatic

operation to trace the programmed path. The retrace function also enables

the user to move the nozzle in the forward direction again (forward return

movement) along the retraced path until the retrace start position is

reached. When the nozzle reaches the retrace start position, the nozzle

resumes movement according to the program.

This function is specific to a two–dimensional machine tool, and

therefore cannot be used with a three–dimensional function.

Procedure for Retrace Operation

To move the nozzle in the forward direction, turn off the REVERSE

switch on the operator’s panel, then press the cycle start switch. If the

REVERSE switch on the operator’s panel is on, the nozzle moves in the

reverse direction or completes reverse movement.

Three methods are available for moving the nozzle in the reverse direction

along the programmed path.

1) When the nozzle is moving in the forward direction, turn on the

REVERSE switch on the operator’s panel during block execution.

2) When the nozzle is moving in the forward direction, turn on the

REVERSE switch on the operator’s panel after a single block stop.

3) When the nozzle is moving in the forward direction, turn on the

REVERSE switch on the operator’s panel after a feed hold stop.

In the case of 1) above, the nozzle starts reverse movement after

completion of the block currently being executed (after execution up to

the position of a single block stop). Turning on the REVERSE switch on

the operator’s panel does not immediately start reverse movement.

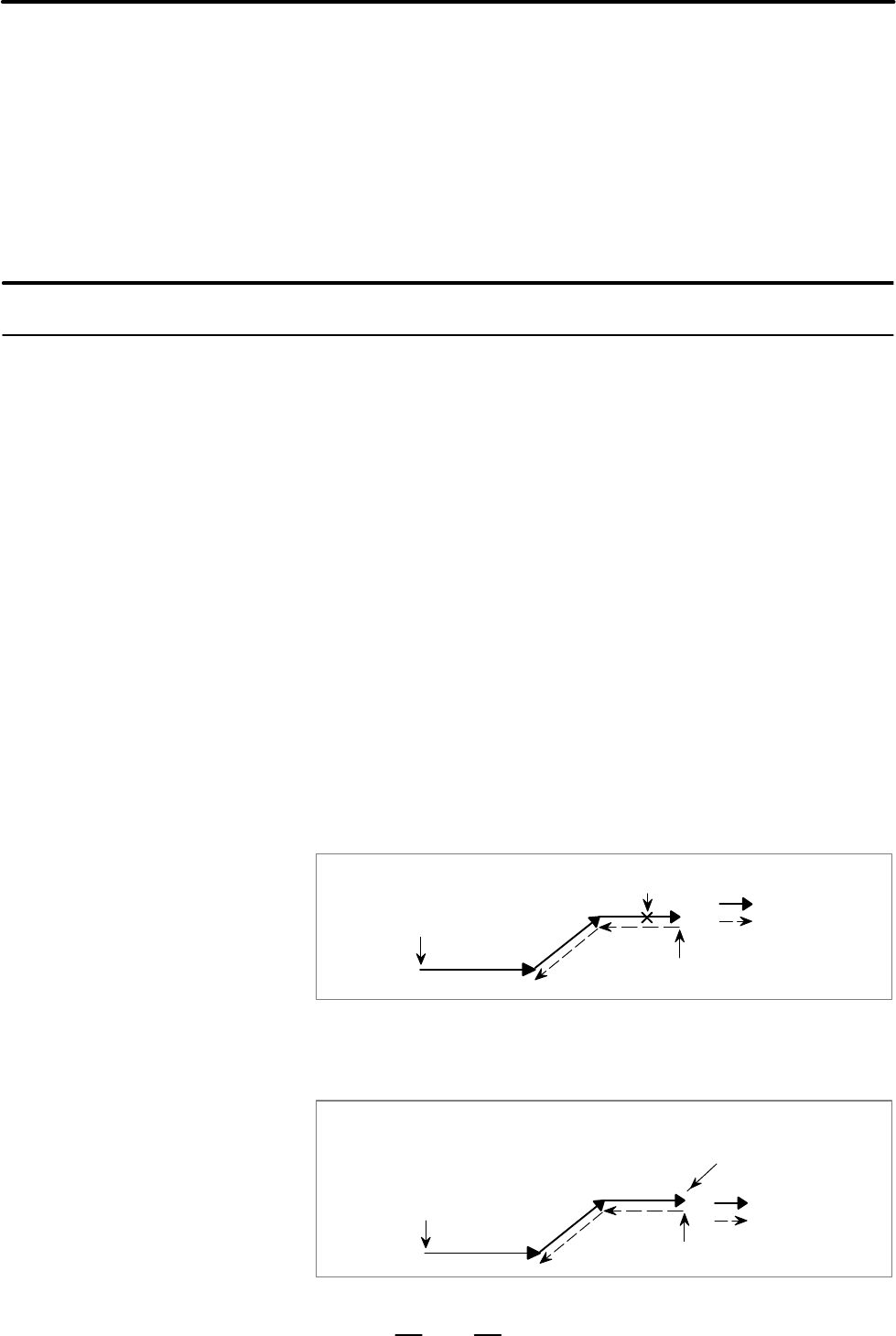

REVERSE swtch rurned on

Cycle start

(forward movement started)

Reverse movement started

Forward movement

Reverse movement

In the case of 2) above, the nozzle starts reverse movement at the position

of a single block stop when the cycle start switch is pressed.

Single block stop

REVERSE switch

turned on cycle start

Forward movement

Reverse movement

Reverse movement started

Cycle start

(forward movement started)

4.10

RETRACE FUNCTION

Procedure

D Forward movement →

Reverse movement
