/ 912

PROGRAMMING18. SPECIFYING THE LASER FUNCTION

B–63664EN/02

366

When the cutter compensation function is used in edge machining mode,

a miniature block that does not exist in the machining program may be

generated, depending on the mode (G41 or G42). The figure below shows

how edge machining is performed at a corner where a miniature block

occurs.

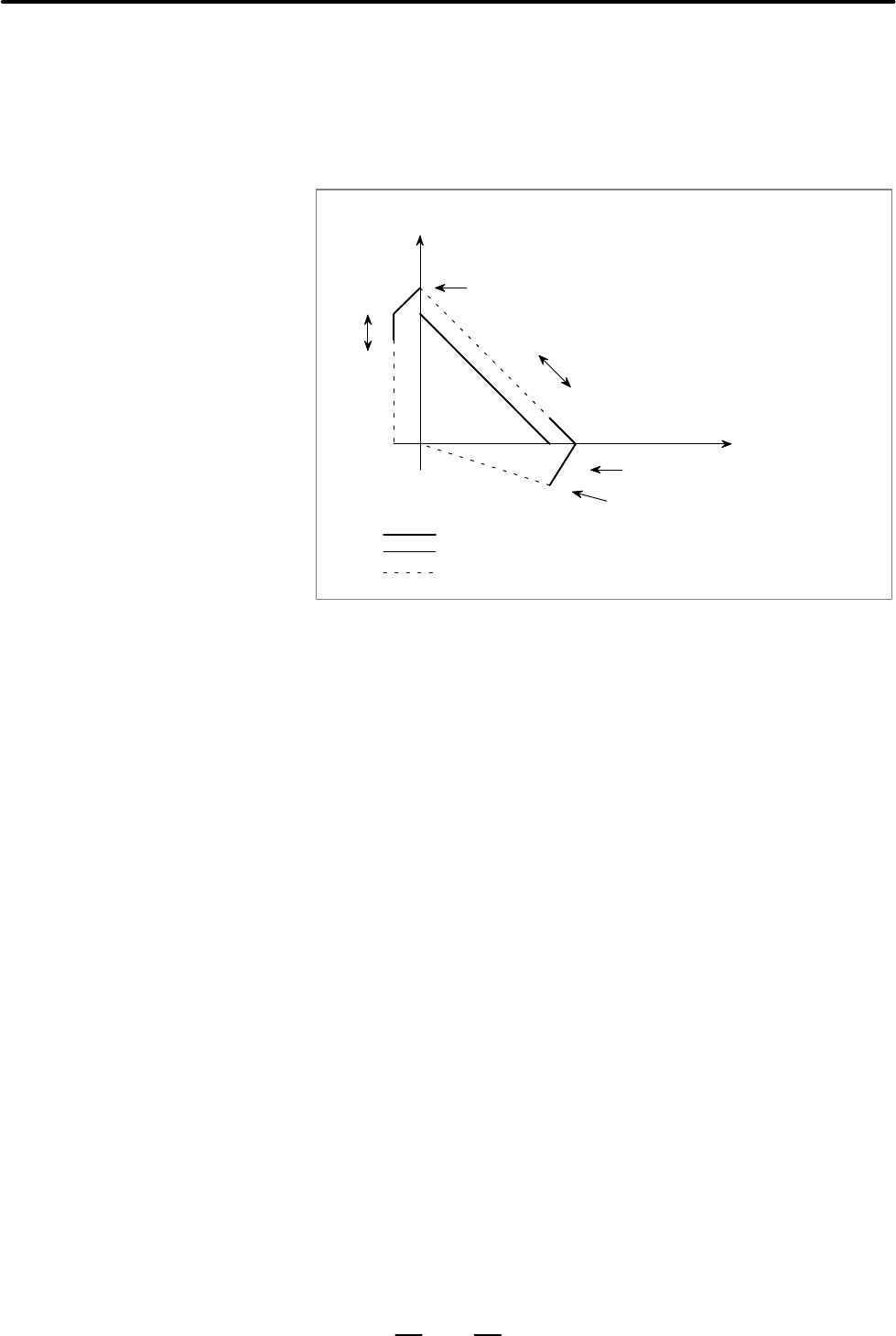

Generated miniature block

Piercing for edge machining

Set return distance

Piercing for edge machining

O300 ;

G92G90X0Y0Z0 ;

E1 ;

G42 ;

G01X50.Y0. ;

G01X0.Y50. ;

G01X0.Y0. ;

G40 ;

M30 ;

: Edge machining

: Movement according to the machining program

: Movement when the cutter compensation function is used

(1)Piercing for edge machining is performed before a miniature block.

(2)In a miniature block generated for cutter compensation, cutting feed

is executed according to the set return feedrate, return power, and

return duty cycle.

(3)Until cutting feed is performed for the set return distance after the

operation of (2), the return feedrate, return frequency, and return duty

cycle are valid.

(4)After cutting feed is performed for the return distance, the normal

feedrate and beam output condition are resumed.

This means that the distance where the return feedrate, return power,

return frequency, and return duty cycle are valid becomes longer, so that

a miniature block is generated.

When a miniature block is generated by cutter compensation, whether to

perform edge machining is selected by determining the angle of a corner

not by calculating the angle between the current block and the next in the

machining program, but by calculating the angle between the current

block and the miniature block.

When the cutter compensation function is used, set an operation angle,

considering not only the processing performed by the machining program

but also a generated miniature block.

If you want to execute edge cutting on a path specified in the machining

program during cutter compensation, set bit 4 of parameter No. 15012 to

In edge machining also, conventional commands (such as S, P, Q, and F)

can be used with a machining program.

D Cutter compensation

function and edge

machining operation

D Combination with

conventional commands
