PROGRAMMING 18. SPECIFYING THE LASER FUNCTION

B–63664EN/02

339

The laser power control function ensures uniform machining by

controlling the peak power, pulse frequency, and pulse duty when the

actual feedrate changes from that specified for corners and other

locations.

G63 P1; Laser power control mode

G63 P0; Laser power control mode cancel

NOTE

G63 must be specified independently. (Do not specify other

G codes in the block.)

The laser power control function controls the power specification, pulse

frequency, and pulse duty, using the formula shown below:

M + Mo ) (Mc–Mo)

Mo : Power, frequency, or duty at a feedrate (F) of 0.

Set with a parameter.

Mmin : Minimum clamp value for the power, frequency, or duty (parameter).

Set with a parameter.

Mc : Power, frequency, or duty specified when laser power control

mode is ON.

Set with a program.

Fc : Feedrate specified when laser power control mode is ON.

Set with a program.

FFc

Mmin

Peak power

Pulse frequency

Pulse duty

Feedrate

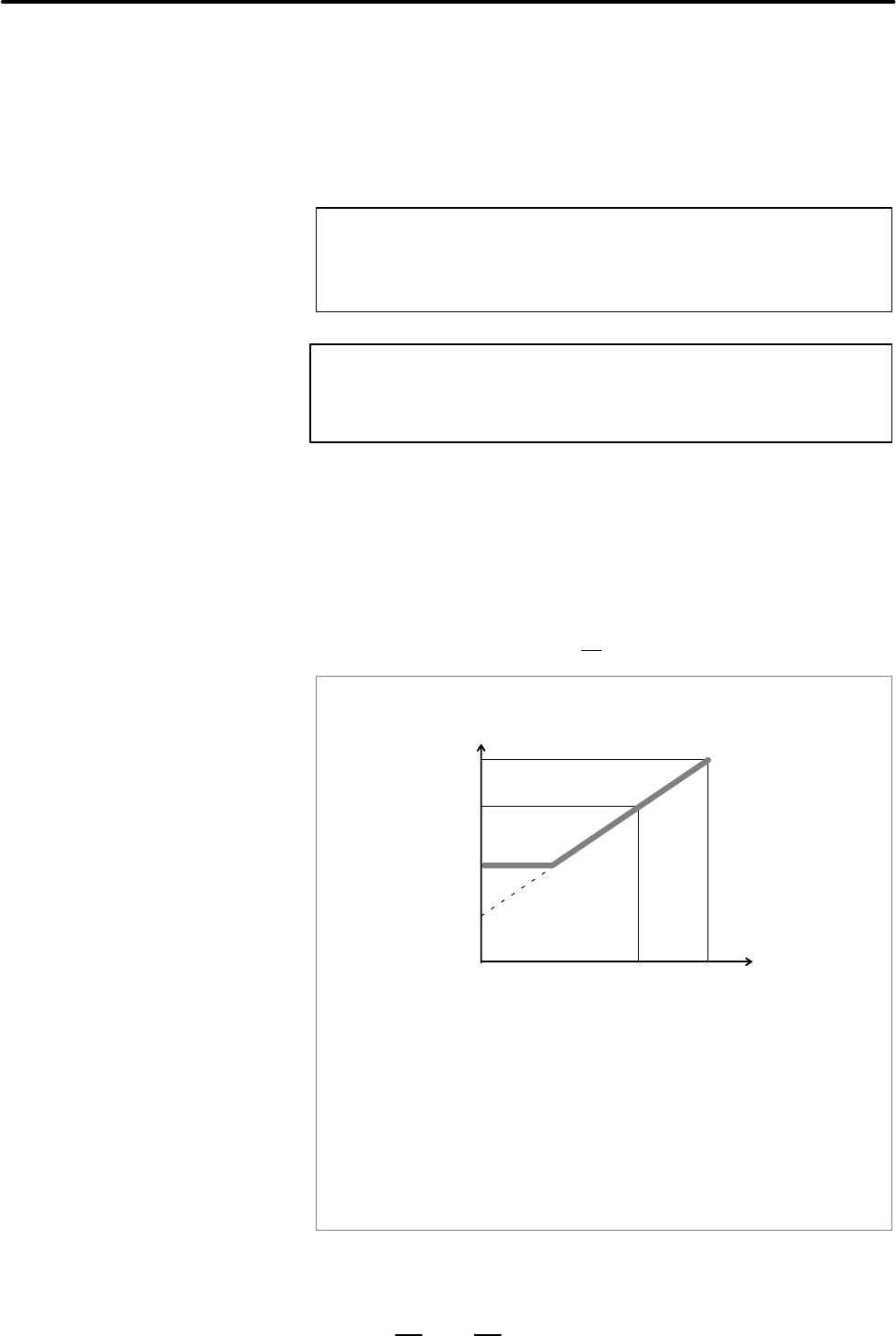

Fig.18.3 Relationship between the Feedrate and the Beam

Output Conditions

18.3

LASER POWER

CONTROL (G63)

Format

Explanations

D Control method
