16i/160i-LB Operators manual Page 792

Operators manual

Page of 912

/ 912

OPERATION15. LASER FUNCTION

B–63664EN/02

768

Specify the minimum duty to be clamped for laser power control. When

the calculated pulse duty is less than this setting during laser power

control, this setting is used.

Specify the type of assist gas to be used 0 to 3 or 0 to 7 (which depends:

on the setting of PRM15001#0) can be specified. When 0 is specified, no

assist gas is selected. When address P is specified for the assist gas select

command (G32) in the program, the program execution overwrites the old

setting with the new setting.

For the correspondence between settings 1 to 7 and actual assist gas types,

refer to the relevant manual of the machine tool builder.

The setting assist gas selection is set to 0 by reset.

Specify the supply pattern of the assist gas flow.

1 to 3 can be specified. One of gas flows 1 to 3 is selected accordingly.

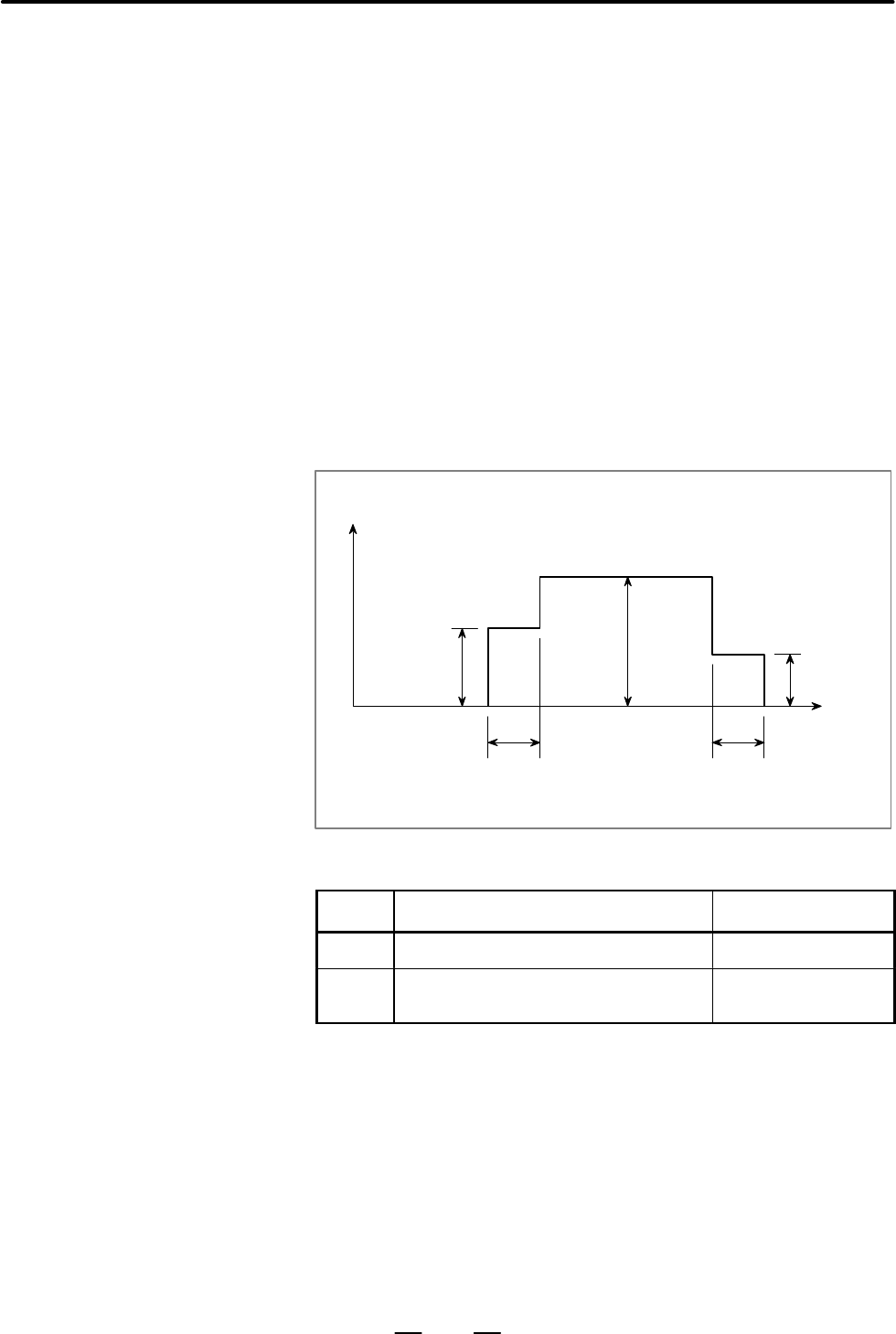

Specify the supply pattern of gas flow 1. The supply patterns of gas flow

corresponds to the following 5 settings.

Pressure

Pressure in

the previous

step

Preflow Working flow

Machining

pressure

After-

flow

Pressure in

the subse-

quent step

Time

Time for the subsequent step

Time for the previous step

The units and setting ranges of time and pressure are as follows.

Setting unit Setting range

Time 0. 01sec 0 to 9999 sec

Pres Refer to the relevant manual of the

machine tool builder.

0 to 255

Specify the supply pattern of gas flow 2.

The settings are the same as those of gas flow 1.

Specify the supply pattern of gas flow 3.

The settings are the same as those of gas flow 1.

Laser setting is possible in any modes.

It is also possible while the machine operates.

The protect key switch does not work for laser setting.

D Power control

(minimum duty)

D Assist gas selection

D Gas flow selection

D Gas flow 1

D Gas flow 2

D Gas flow 3

Limitations
