OPERATION

B–63664EN/02

3. MANUAL OPERATION

475

In the handle mode, the nozzle can be minutely moved by rotating the

manual pulse generator on the machine operator’s panel. Select the axis

along which the nozzle is to be moved with the handle feed axis selection

switches.

The minimum distance the nozzle is moved when the manual pulse

generator is rotated by one graduation is equal to the least input increment.

Or the distance the nozzle is moved when the manual pulse generator is

rotated by one graduation can be magnified by 10 times or by one of the

two magnifications specified by parameters (No. 7113 and 7114).

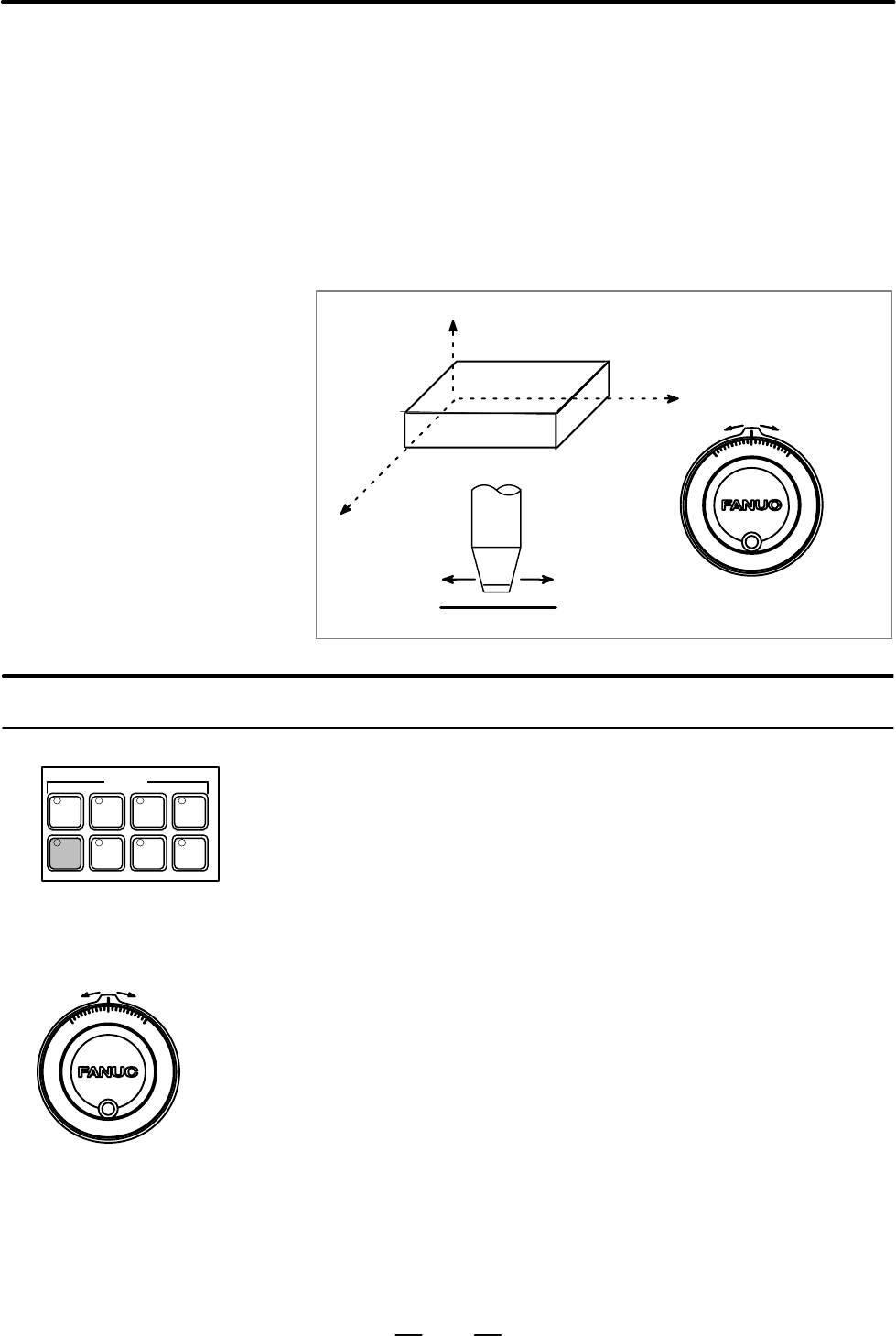

Manual pulse generator

Procedure for Manual Handle Feed

1 Press the HANDLE switch, one of the mode selection switches.

2 Select the axis along which the nozzle is to be moved by pressing a

handle feed axis selection switch.

3 Select the magnification for the distance the nozzle is to be moved by

pressing a handle feed magnification switch. The minimum distance

the nozzle is moved when the manual pulse generator is rotated by one

graduation is equal to the least input increment.

4 Move the nozzle along the selected axis by rotating the handle.

Rotating the handle 360 degrees moves the nozzle the distance

equivalent to 100 graduations.

The above is an example. Refer to the appropriate manual provided

by the machine tool builder for the actual operations.

3.4

MANUAL HANDLE

FEED

TEACH

JOG

HANDLE

MDI

MEMORY

REMOTE

ZERO

RETURN

MODE

EDIT

Manual pulse generator
