PROGRAMMING 18. SPECIFYING THE LASER FUNCTION

B–63664EN/02

343

When G01 is used instead of G00 to perform positioning, beam output

must be stopped during positioning operation.

When G01S0 or G01Q0 is specified because G01 is used for positioning

in the power control mode, the power and pulse duty cycle are clamped

at the minimum peak power (parameter No. 15090) and minimum pulse

duty cycle (parameter No. 15092) of power control, so the beam cannot

sometimes be stopped.

When bit 4 (SQ0) of parameter No. 15096 is set to 1, power control is

stopped if either the specified peak power (parameter No. 15040) or the

specified pulse duty cycle (parameter No. 15042) is set to 0.

This can surely stop the beam also at the time of positioning.

When the beam is stopped using G01S0, however, the minimum output

power (parameter No. 15211) must be set to 1.

The reference feedrate (Fc in Fig. 18.3) is usually used as a specified

feedrate when the power control mode is entered. By setting bit 5 of

parameter No. 15096, a feedrate obtained by applying a feedrate override

to a specified feedrate can be used as a reference feedrate.

1) When the specified feedrate when the power control mode is entered

is the reference feedrate (bit 5 of parameter No. 15096 is set to 0)

In this case, even when the feedrate override value is changed in the power

control mode, the reference feedrate is kept unchanged, but the actual

feedrate changes. So, the laser output changes according to the actual

feedrate.

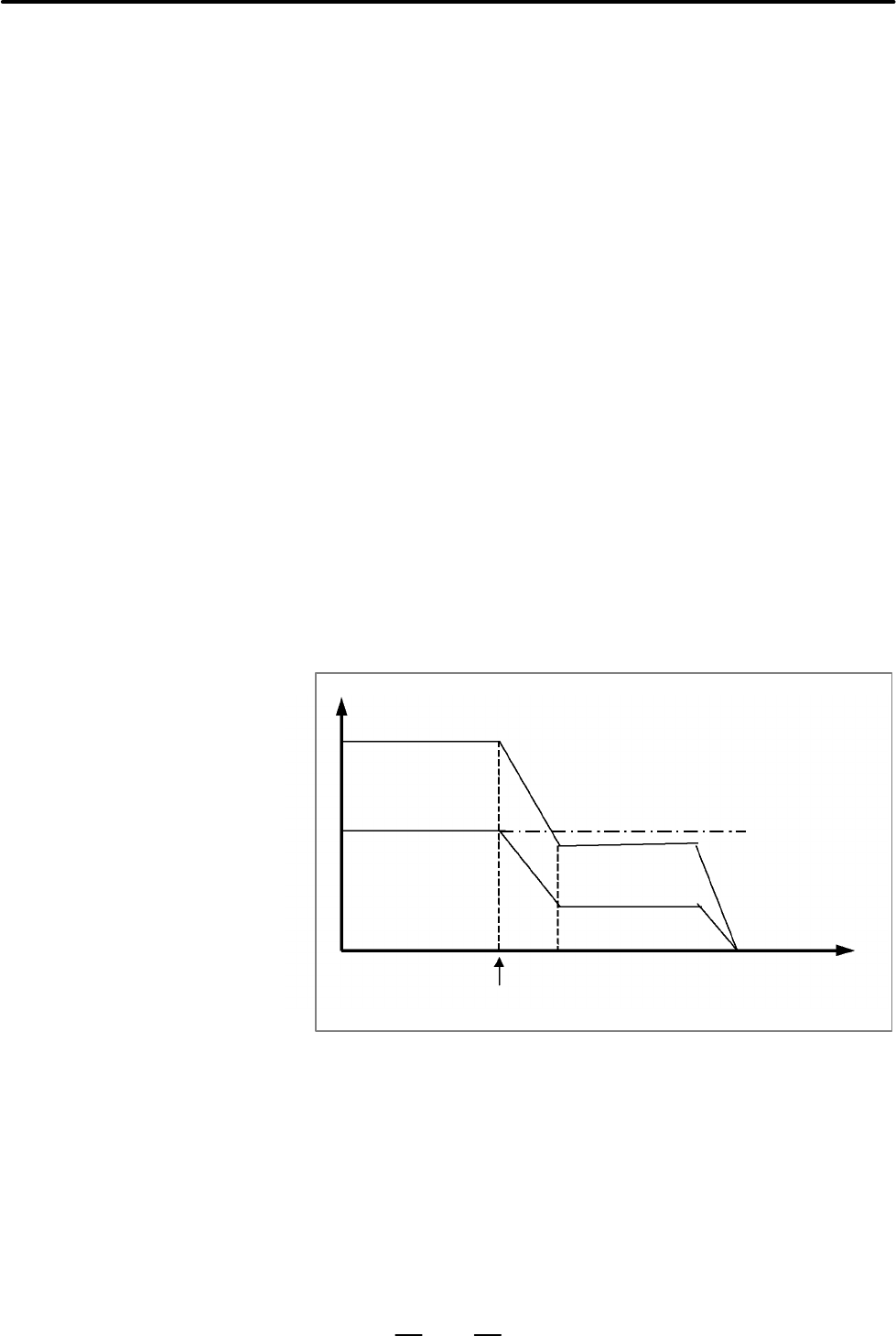

Laser output

Reference feedrate Fc

Actual feedrate

Override changed (large to small value)

Time

Actual feedrate and laser output (1)

2) When the reference feedrate is obtained by applying a feedrate override

to a specified feedrate (bit 5 of parameter No. 15096 is set to 1)

In this case, as the override value is changed, the reference feedrate

changes. Therefore, when the feedrate is steady, the laser output is kept

unchanged; during acceleration/deceleration due to change in override,

the laser output changes.

If the feedrate override value is decreased, the actual feedrate and laser

output are changed as shown below.

D When using G01 to

specify positioning

D Reference feedrate when

the feedrate override

value has been changed
