OPERATION3. MANUAL OPERATION
B–63664EN/02
478
Whether the distance the nozzle is moved by manual operation is added
to the coordinates can be selected by turning the manual absolute switch
on or off on the machine operator’s panel. When the switch is turned on,
the distance the nozzle is moved by manual operation is added to the
coordinates. When the switch is turned off, the distance the nozzle is
moved by manual operation is not added to the coordinates.
O
P1
P2
Y–axis
X–axis
Manual operation
The coordinates change by the amount of
travel by manual operation.

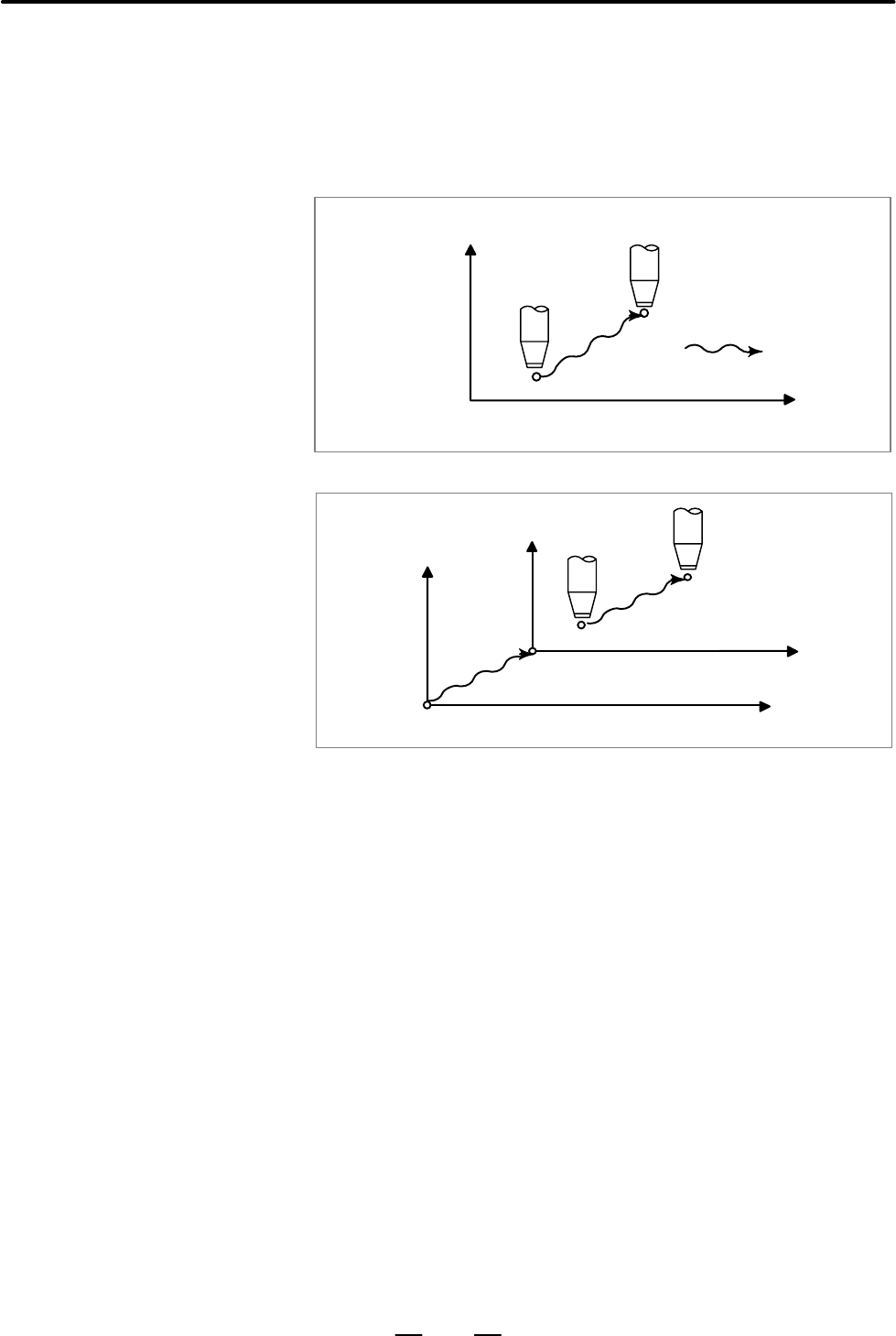

Fig.3.5 (a) Coordinates with the switch ON
The coordinates do not change.
X2
X1
Y1
Y2
P1
P2
O1
O2
Fig.3.5 (b) Coordinates with the switch OFF
3.5
MANUAL ABSOLUTE
ON AND OFF
