OPERATIONB–63664EN/02 9. EDITING PROGRAMS

645

Another program can be inserted at an arbitrary position in the current

program.

Oxxxx

Before merge

Oyyyy

Merge

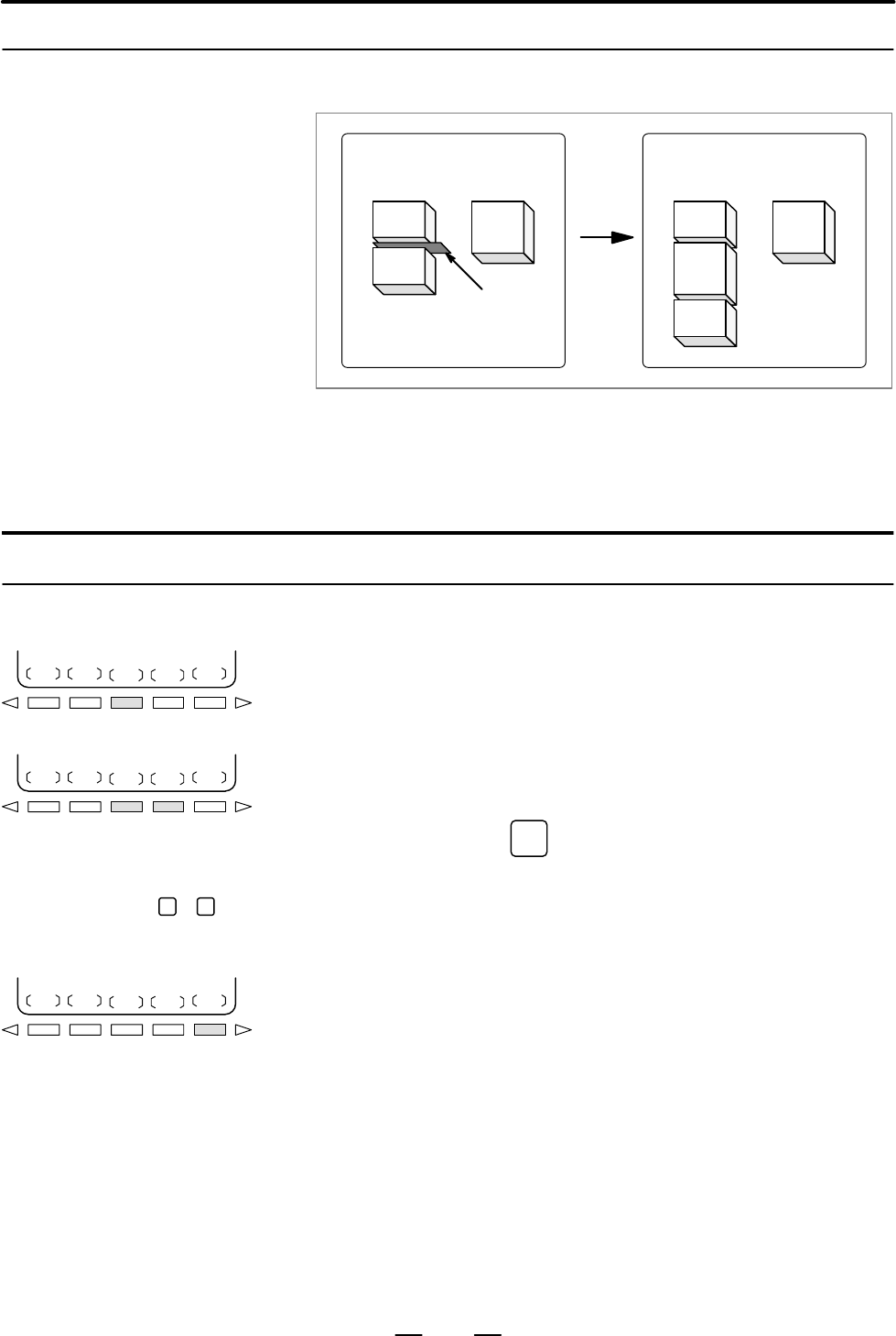

Fig.9.6.4 Merging a program at a specified location

Oxxxx

After merge

Oyyyy

Merge

location

In Fig.9.6.4, the program with program number XXXX is merged with the

program with program number YYYY. The OYYYY program remains

unchanged after merge operation.

Procedure for merging a program

1 Perform steps 1 to 5 in III–9.6.1.

2 Check that the screen for the program to be edited is selected and press

soft key

[MERGE].

3 Move the cursor to the position at which another program is to be

inserted and press soft key

[’CRSR] or [BTTM’](in the latter case,

the end of the current program is displayed).

4 Enter the number of the program to be inserted (with only numeric

keys) and press the

INPUT

key.

5 Press soft key

[EXEC].

The program with the number specified in step 4 is inserted before the

cursor positioned in step 3.

9.6.4

Merging a Program

EXEC

0 9

’CRSR

BTTM’

MERGE

Numeric keys


