OPERATION

4. AUTOMATIC OPERATION

B–63664EN/02

518

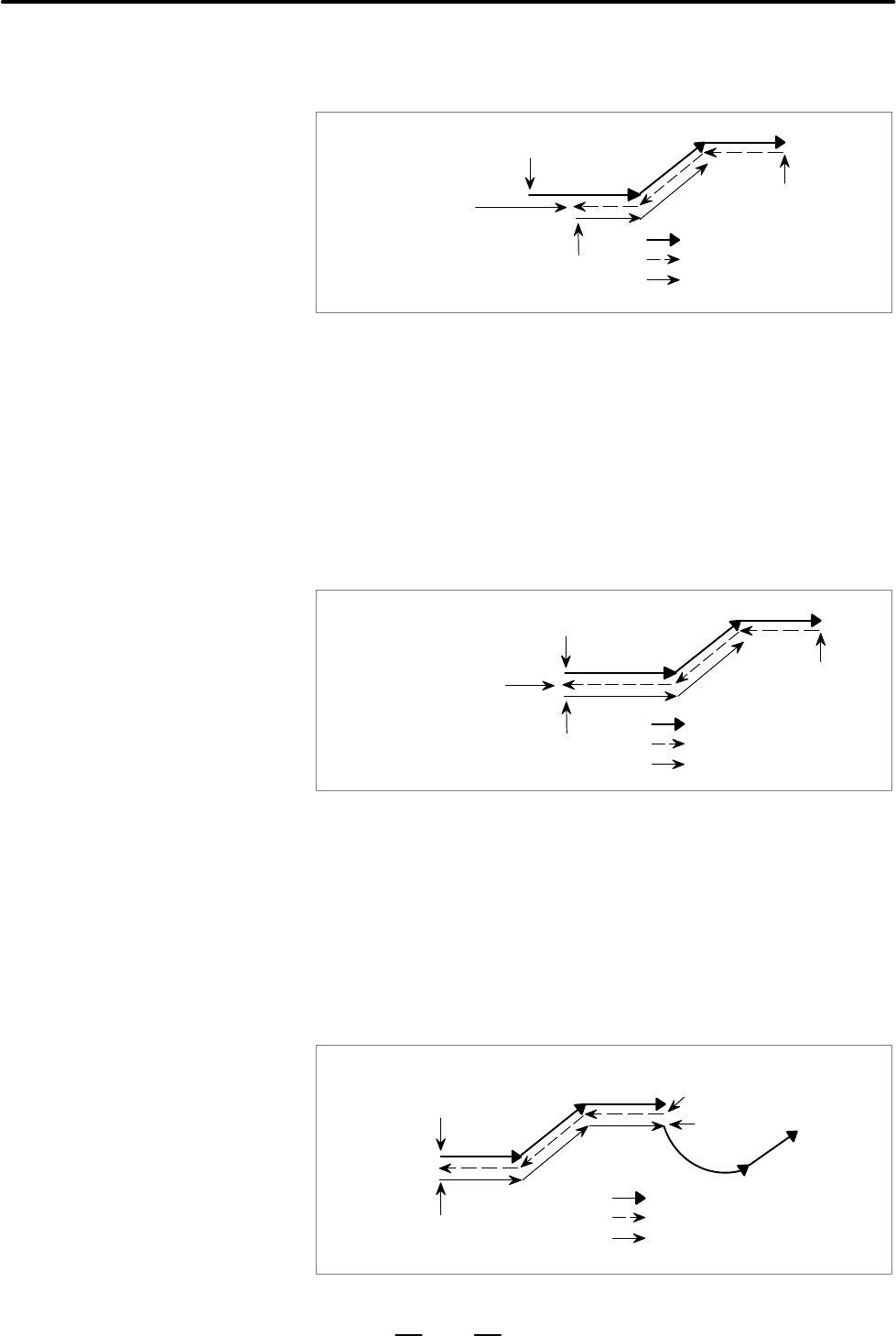

In the case of 3) above, the nozzle starts forward return movement at the

position of a feed hold stop when the cycle start switch is pressed.

Cycle start

(forward movement started)

Feed hold stop

REVERSE

switch turned off

Cycle start

Forward return

movement started

Reverse movement

started

Forward movement

Reverse movement

Forward return

movement

When there are no more blocks for which to perform reverse movement

(when the nozzle has moved back to the initial forward movement block

or the nozzle has not yet started forward movement), the reverse

movement completion state is entered and operation stops.

Even when the cycle start switch is pressed with the REVERSE switch

on the operator’s panel turned on, no operation is performed (the reverse

movement completion state remains unchanged). When the cycle start

switch is pressed after turning off the REVERSE switch on the operator’s

panel, the nozzle starts forward return movement or forward movement.

Cycle start

(forward movement started)

Reverse movement

completed

REVERSE switch

turned off

Cycle start

Forward return

movement

started

Reverse movement

started

Forward movement

Reverse movement

Forward return movement

When the nozzle completes a forward return movement up to the block

where reverse movement was started, the nozzle automatically resumes

forward movement. Programmed commands are read and program

execution is continued. No particular operation is required to resume

forward movement.

When beam movement switches from forward return movement to

forward movement, the display of RTRY (Re–TRY) in the lower–right

corner of the screen disappears.

Cycle start

(forward movement started)

Reverse movement started

Forward movement

started

Forward return movement started

Forward movement

Reverse movement

Forward return movement

D Reverse movement →

Reverse movement

completion → Forward

return movement

D Forward return movement

→ Forward movement
