OPERATIONB–63664EN/02 9. EDITING PROGRAMS

643

A new program can be created by copying part of a program.

Oxxxx Oxxxx

After copy

Oyyyy

Copy

Before copy

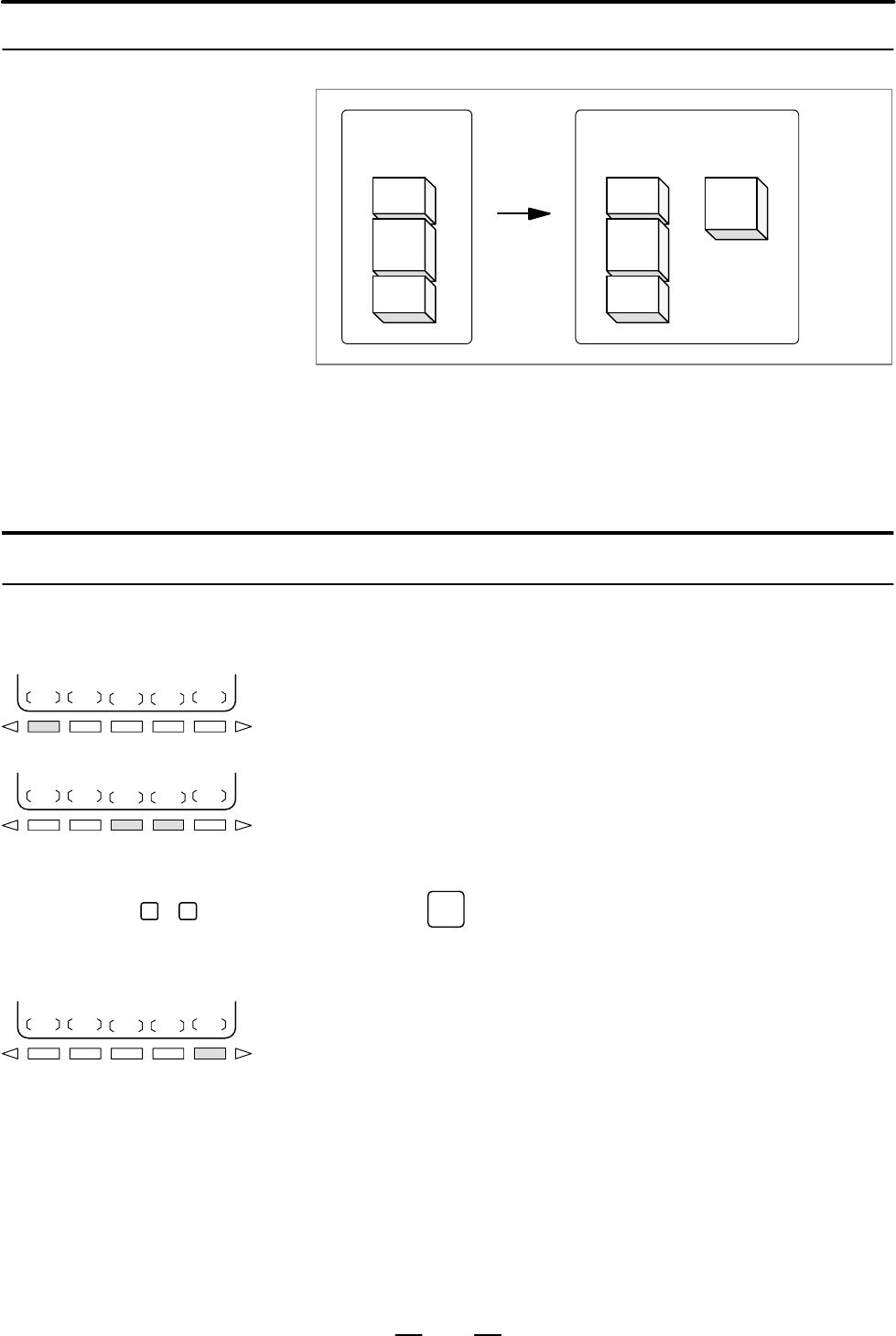

Fig.9.6.2 Copying Part of a Program

In Fig.9.6.2, part B of the program with program number xxxx is copied

to a newly created program with program number yyyy. The program for

which an editing range is specified remains unchanged after copy

operation.

Procedure for copying part of a program

1 Perform steps 1 to 6 in III–9.6.1.

2 Move the cursor to the start of the range to be copied and press soft key

[CRSR].

3 Move the cursor to the end of the range to be copied and press soft key

[CRSR] or [BTTM] (in the latter case, the range to the end of the

program is copied regardless of the position of the cursor).

4 Enter the number of the new program (with only numeric keys) and

press the

INPUT

key.

5 Press soft key

[EXEC].

9.6.2

Copying Part of

a Program

CRSR

0 9

CRSR BTTM

EXEC

Numeric keys 
