16i/160i-LB Operators manual Page 541

Operators manual

Page of 912

/ 912

OPERATION

B–63664EN/02

4. AUTOMATIC OPERATION

517

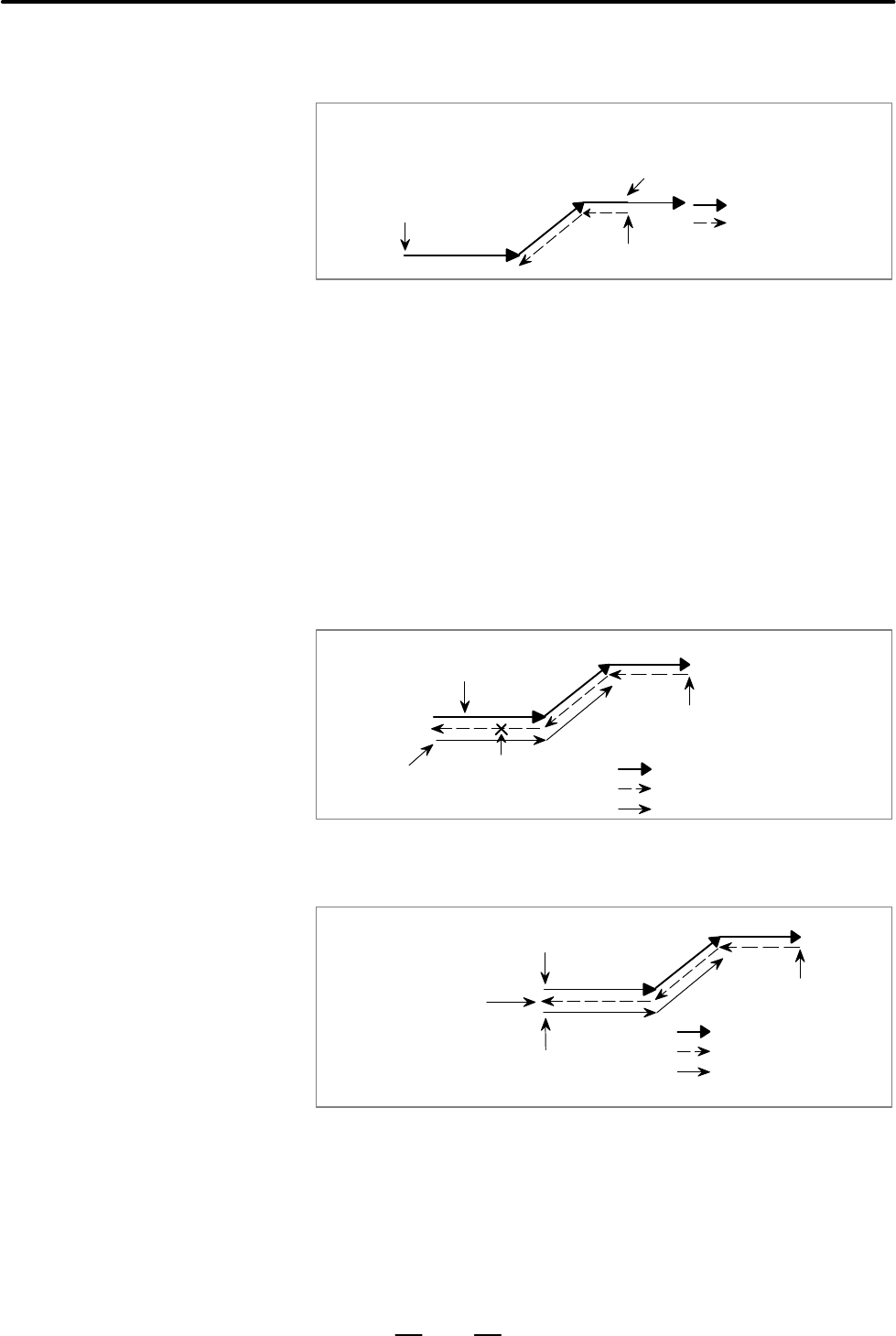

In the case of 3) above, the nozzle starts reverse movement at the position

of a feed hold stop when the cycle start switch is pressed.

Feed hold stop

REVERSE switch

rurned on cycle start

Cycle start

(forward movement started)

Reverse movement started

Forward movement

Reverse movement

Three methods are available for moving the nozzle in the forward

direction again along the retraced path.

1) When the nozzle is moving in the reverse direction, turn off the

REVERSE switch on the operator’s panel during block execution.

2) When the nozzle is moving in the reverse direction, turn off the

REVERSE switch on the operator’s panel after a single block stop.

3) When the nozzle is moving in the reverse direction, turn off

theREVERSE switch on the operator’s panel after a feed hold stop.

In the case of 1) above, the nozzle starts forward return movement after

completion of the block currently being executed (after execution up to

the position of a single block stop). Turning off the REVERSE switch on

the operator’s panel does not immediately start forward return movement.

Cycle start

(forward movement started)

Reverse movement

started

Forward return

movement

started

REVERSE

switch

turned off

Forward movement

Reverse movement

Forward return movement

In the case of 2) above, the nozzle starts forward return movement at the

position of a single block stop when the cycle start switch is pressed.

Cycle start

(forward movement started)

Single block stop

REVERSE switch

turned off

Cycle start

Forward return movement started

Reverse movement

started

Forward movement

Reverse movement

Forward return

movemnt

D Reverse movement →

Forward return movement
