OPERATION12. GRAPHICS FUNCTION
B–63664EN/02
740

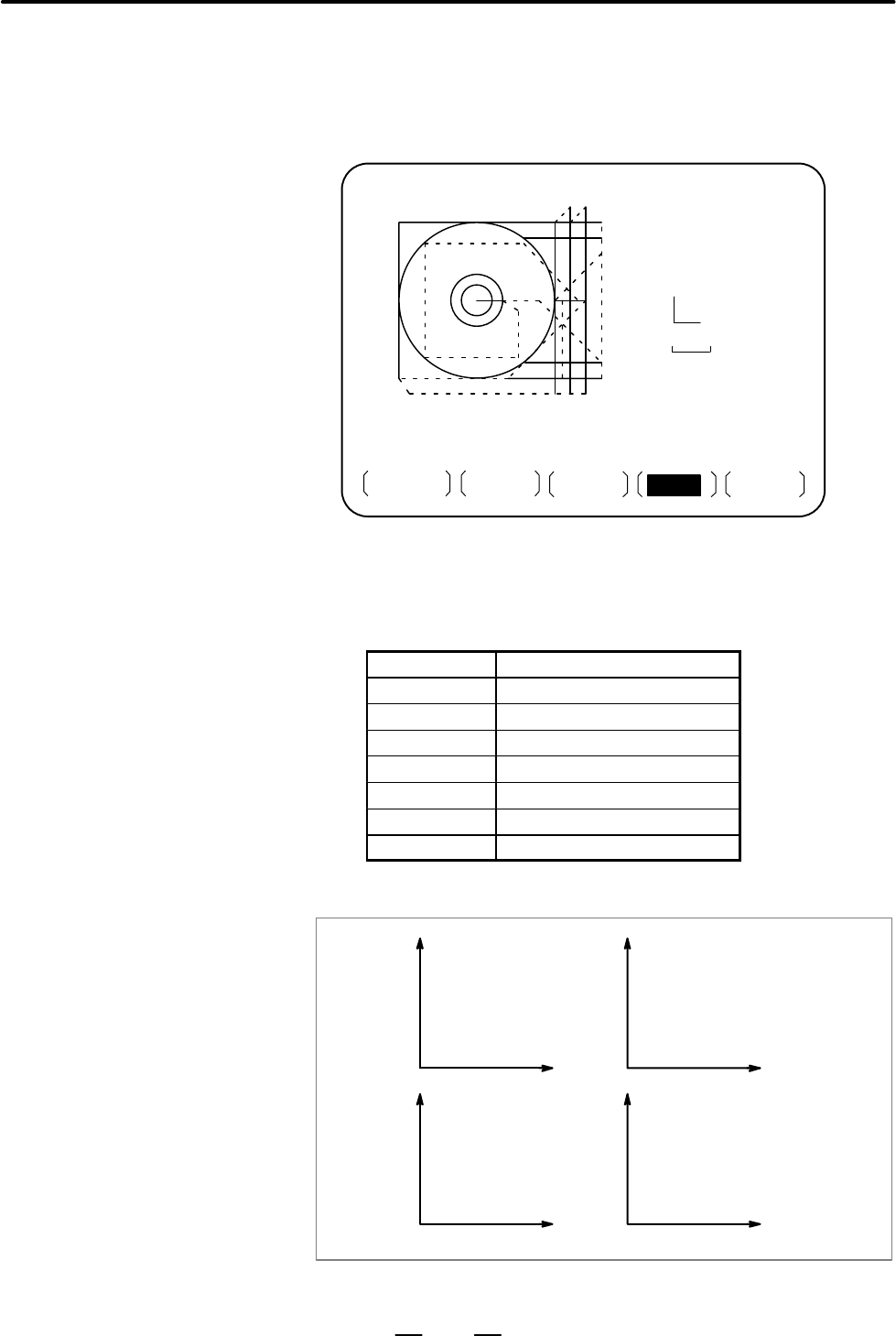

15 To display a mark at the current nozzle position, display the
PATH GRAPHIC (POSITION) screen by pressing soft key [POS]
on the PATH GRAPHIC (PARAMETER) screen of step 1 above.
This mark blinks at the current nozzle center position on the beam
path.
14 : 27 : 47
PATH GRAPHIC (POSITION) O1126 N01126
Y
X
25.8
PARAM EXEC
SCALE
MDI
* * * * * * * * * *
POS
The relationship between the setting value and drawing screen is as shown
below:
Setting value Drawing screen
0 Plane view (XY)
1 Plane view (YZ)
2 Plane view (ZY)
3 Plane view (XZ)
4 Isometric projection (XYZ)
5 Isometric projection (ZXY)
6 Biplane view (XY,XZ)
The following coordinate systems are selected.
X
YZ
XY YZ
ZY XZ
X
YZ
Y
Z
P=0 P=1
P=2 P=3
Fig.12.2.1 (a) Coordinate systems for the plane view
Mark display
Explanations
D AXES
D Plane view (XY,YZ,ZY,XZ)
