NOTE
1 When a G53 command specifies an axis that is not in the cutter compensation C plane, a
perpendicular vector is generated at the end point of the previous block, and the beam does
not move. In the next block, offset mode is automatically resumed (in the same way as when
two or more continuous blocks do not specify any move commands).

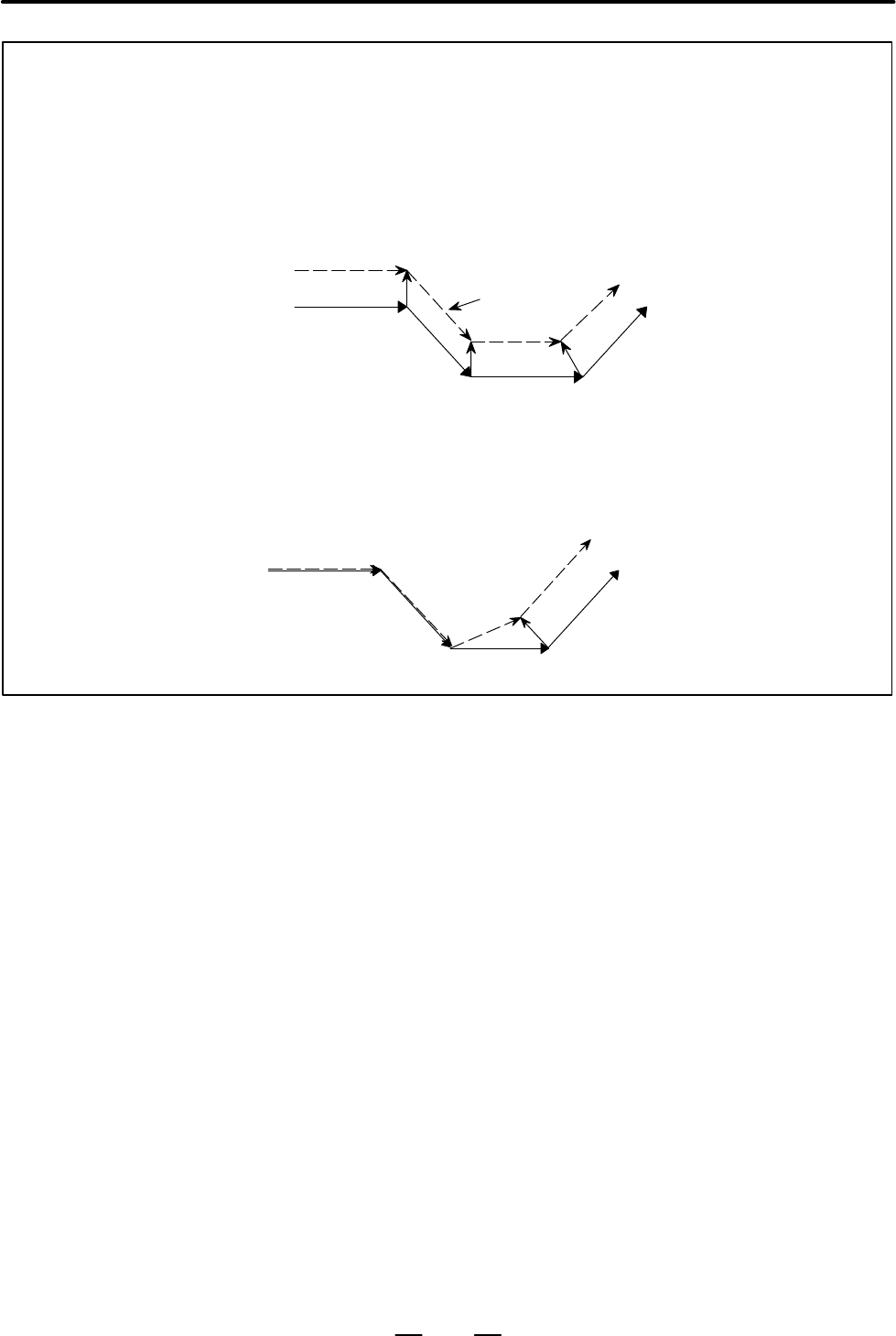

Example: When CCN (bit 2 of parameter No. 5003) = 0, and type A is used
2 When a G53 block is specified to become a start–up block, the next block actually becomes
the start–up block. When CCN (bit 2 of parameter No. 5003) is set to 1, an intersection vector
is generated.
Example: When CCN (bit 2 of parameter No. 5003) = 0 and type A is used
s
G53Z_
G00
(G41G00X_Y_)
r
r
s
sG00
G00
Start–up
s
G00
G41G53
r
s
s
G00
G00
Start–up
