PROGRAMMING

B–63664EN/02

4. INTERPOLATION FUNCTIONS

In the absolute command, coordinate value of the end point is

programmed.

In the incremental command the distance the nozzle moves is

programmed.

_: For an absolute command, the coordinates of an end

position, and for an incremental commnad, the distance

the nozzle moves.

G00 _;IP

Either of the following nozzle paths can be selected according to bit 1

(LRP) of parameter No. 1401.

D Nonlinear interpolation positioning

The nozzle is positioned with the rapid traverse rate for each axis

separately. The nozzle path is not normally straight.

D Linear interpolation positioning

The nozzle moves along a line to the specified position. The nozzle

is positioned within the shortest possible time at a speed that is not

more than the rapid traverse rate for each axis. However, the

nozzle path is not the same as in linear interpolation (G01).

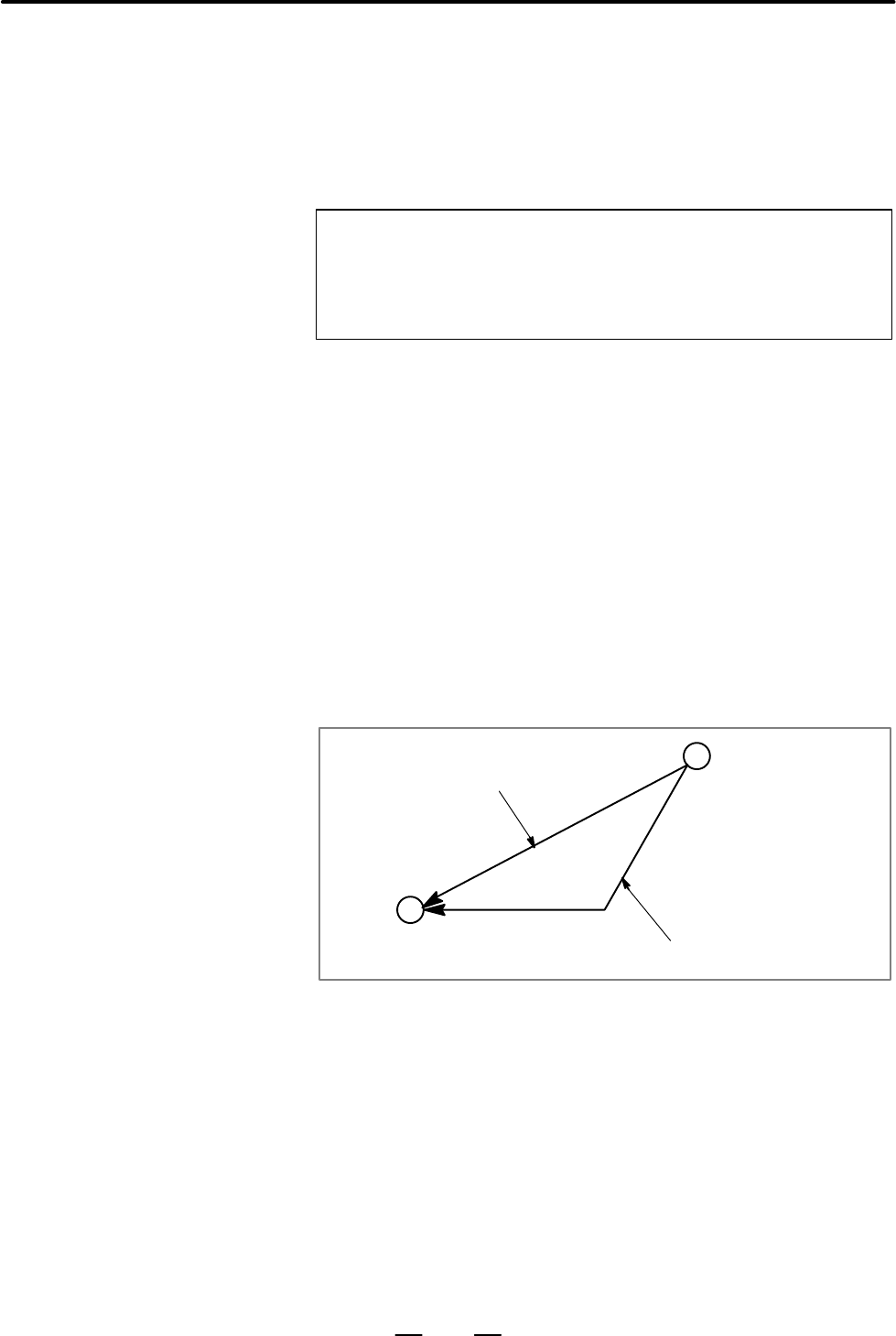

End position

Non linear interpolation positioning

Start position

Linear interpolation positioning

The rapid traverse rate in G00 command is set to the parameter No. 1420

for each axis independently by the machine tool builder. In the

posiitoning mode actuated by G00, the tool is accelerated to a

predetermined speed at the start of a block and is decelerated at the end

of a block. Execution proceeds to the next block after confirming the

in–position.

“In–position ” means that the feed motor is within the specified range.

This range is determined by the machine tool builder by setting to

parameter (No. 1826).

In–position check for each block can be disabled by setting bit 5 (NCI)

of parameter No.1601 accordingly.

4.1

POSITIONING (G00)

Format

Explanations
